Browning®
767293

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.

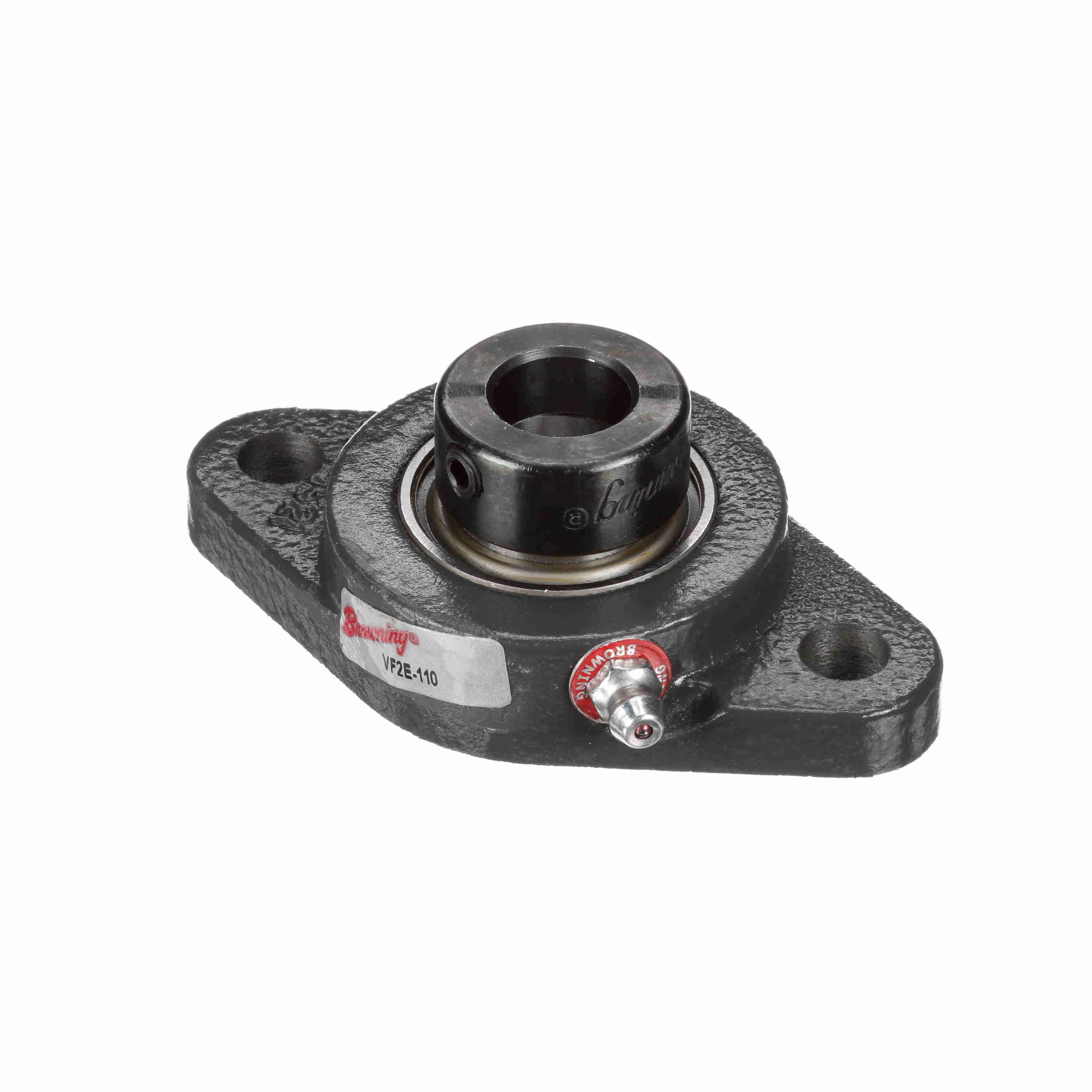

Browning® Flange Mount Ball Bearing Unit, Intermediate Duty Non-Expansion, Series: VF2E 100, 5/8 in Bore, 3 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 2-1/8 in Overall Length/Diameter, 1-21/64 in Overall Depth, 3-7/8 in Overall Height, Eccentric Collar Locking Device, Steel Bearing, Nitrile Rubber Seal, 2801 lb Dynamic/1651 lb Static Load, 5000 rpm Maximum, -20 to 200 deg F, Gray Painted

• Eccentric locking design incorporates a precision eccentric collar to mate with the inner ring extension for shaft hold
• An anti-rotation rivet prevents outer ring creep or rotation within the housing
• Zone hardened inner race
• NLGI #2 lithium complex grease
• 52100 steel insert
• Powder coat epoxy cast iron housing
• Eccentric locking designed for locking in direction of rotation

• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_764056_Installation_Manual.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_VF2E108_Specification_Sheet.pdf
