Timken® 2MMV9320HX DUL

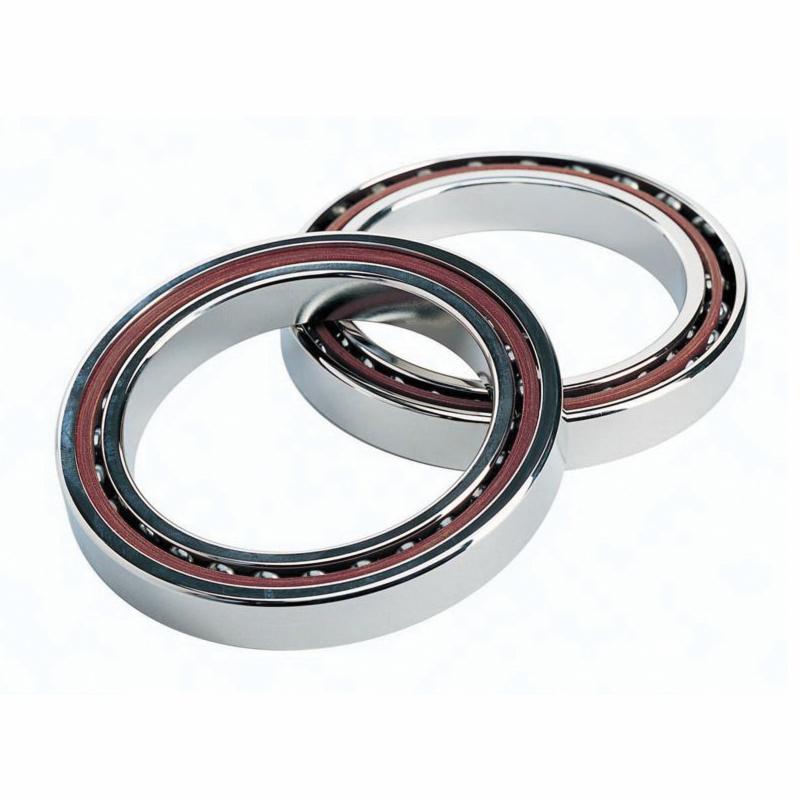

Timken® 2MMV9320HX DUL 2MMV9300HX Light Duty Super Precision Angular Contact Ball Bearing With Steel Ball, 100 mm Dia Bore, 140 mm OD, 2 Rows, 20 mm W, 15 deg, 31400 N Dynamic/24860 N Static Load
- Manufacturer: Timken
- Brand: Timken®
- BSC Item#: 2MMV9320HXCRDUL FAF
- MPN: 2MMV9320HX DUL
- UPC: 087796242043
- Min. Order Qty: 1
- Qty. Interval: 1 Availability: Call for Availability
-
Login to see price
2MMV-HX are dimensionally interchangeable with equivalent 9100, 99100, 9300 and ISO series-10 and 19 bearings. These designs enable spindle heads to remove more material in less time while maintaining superior machining tolerances. This is achieved through a proven combination of unique ball complements with precision engineering raceway geometries.
Timken® Super Precision Angular Contact Ball Bearing, Light Duty, Series: 2MMV9300HX, 100 mm Bore Dia, 140 mm Outside Dia, 2 Rows, 20 mm Width, 15 deg Contact, 31400 N Dynamic/24860 N Static, Phenolic Cage, 11400 rpm Maximum
- Single and double-row ball screw
- Very high-speed
- High accuracy and stiffness
- Low operating temperature
- Low noise and vibration
- Angular contact low shoulder on both inner and outer-ring
Catalog
| Standard/Approvals | : | ABMA ABEC 7/9 Certified |
| Application | : | High Speed Internal Grinding Spindle, Ultra Precision Surface Grinding Spindle, Precision Surface Grinding Spindle, Heavy Duty Precision Boring Spindle, High Speed Precision Boring Head, Ultra Precision Grinding Workhead, Single Bar Machine, Precision Jig Boring Spindle, Super Precision Lathe Headstock, High Speed Motorized Router and Precision Vertical Milling Spindle |
