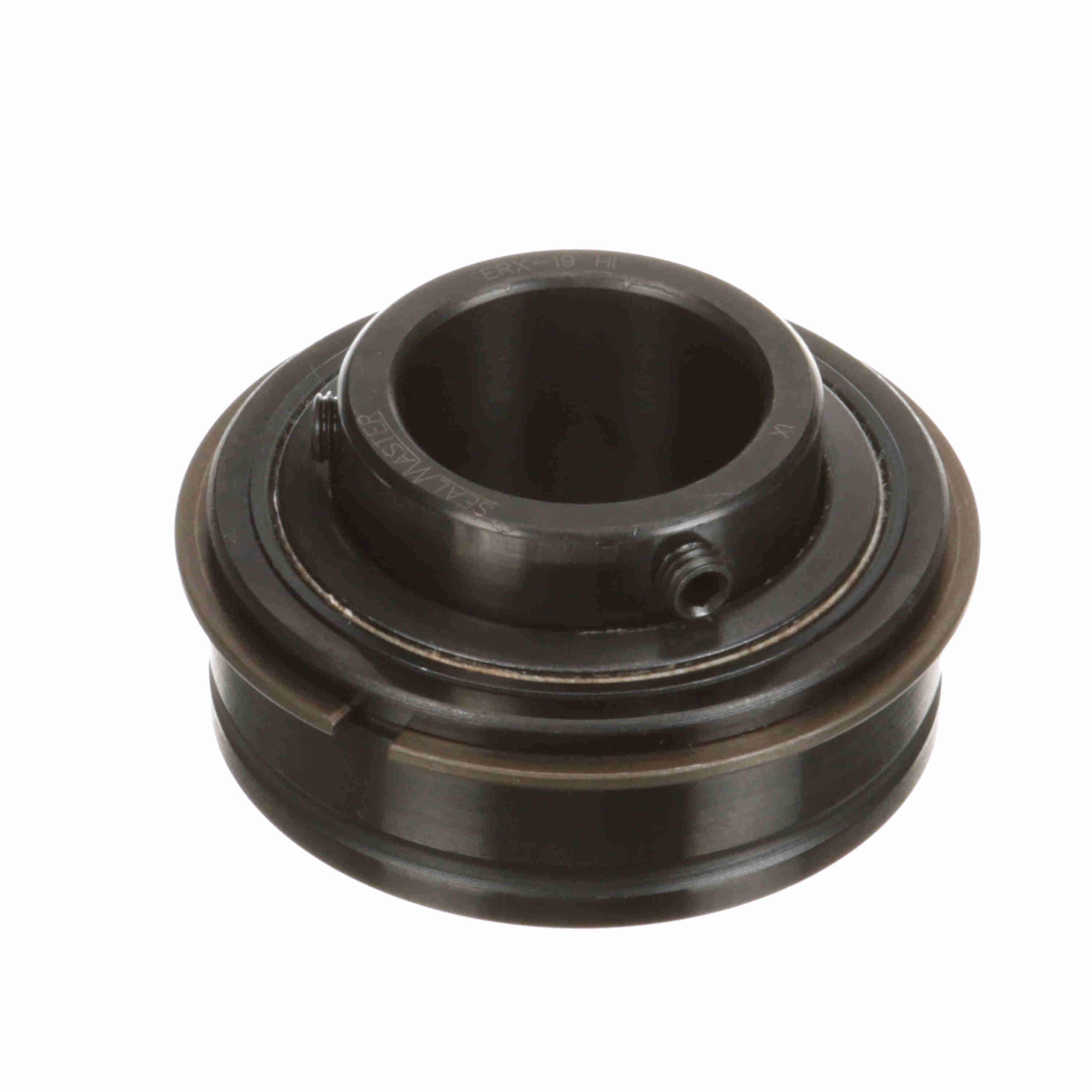

Sealmaster®
705009

Sealmaster® ERX-TREME™ PN gold bearings feature high phosphorus, electroless nickel coated steel with patented seal technology and tapered land outer race profile available in either setscrew or Skwezloc® concentric locking collar with a cylindrical OD and snap ring for easy installation in a housing. The high performance triple lip seal is the latest innovation of over 10 patents on sealing technology. The combination of stainless flingers and FKM lip materials provide a strong contaminant resistance and GoldPlex® FG (USDA H1) food grade grease loss. Specially engineered for industries with corrosive wash down environments such as food and beverage, pharmaceuticals and chemical processing, the ERX-TREME™ PN gold mounted ball bearings provide outstanding performance in demanding corrosive environments.

Sealmaster® Ball Bearing Insert, Standard Duty Straight Bore, Series: ERX HI, 1.188 in Bore, 2.441 in OD, 1-1/2 in Width, 4381 lb Dynamic/2567 lb Static Load, Steel Bearing, Nomex® Seal, Brass Cage, 2400 rpm Maximum, 400 deg F, Black Oxide Coated

• The inner and outer ring of the Sealmaster® ERX-TREME™ PN gold bearing are high phosphorous, electroless nickel plated 52100 steel
• Single setscrew locking
• Zone hardened inner race
• Land riding retainer
• ER style cylindrical OD bearing with snap and with black oxided bearing rings_x005f Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews_x005f High temperature felt labyrinth seal and flinger_x005f Increased internal clearance_x005f Krytox high temperature grease

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_700310_Catalog.pdf
