RBC®

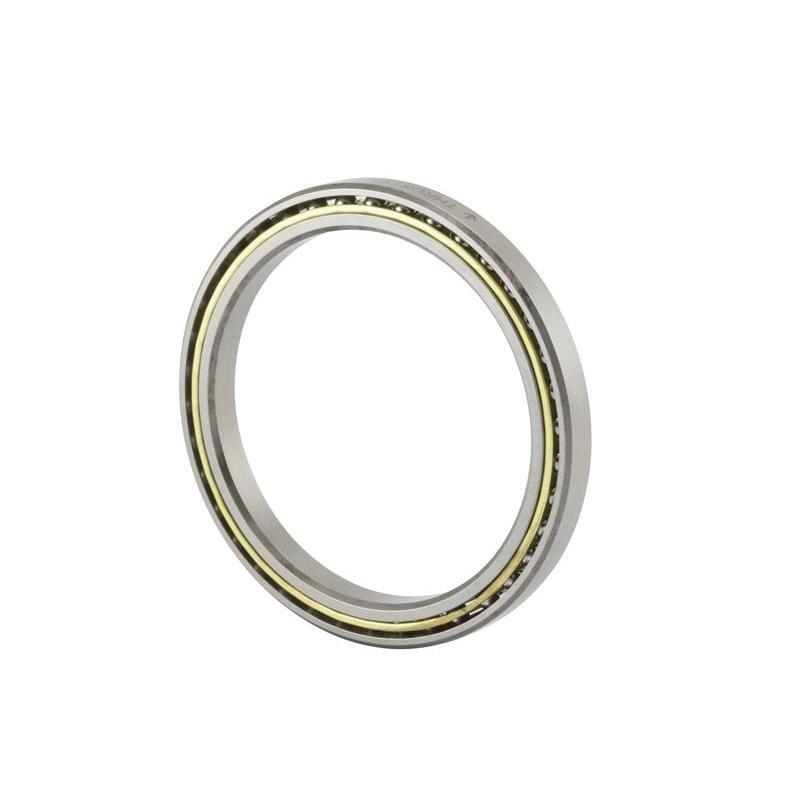

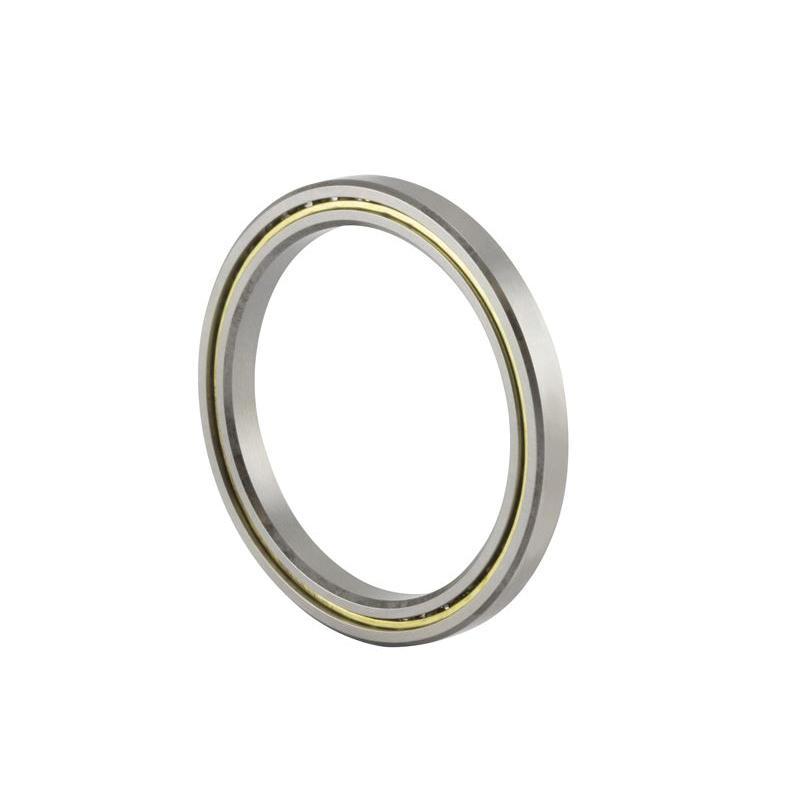

KG100AR0-RBC

RBC® thin section ball bearings are engineered to solve a variety of design problems that cannot be solved with conventional ball bearings. A bearing is considered a thin section when the bore diameter is greater than four times the radial cross section. Within any thin section ball bearing series, the cross section remains constant as the bore diameter changes. Typically the cross section is twice the ball diameter and nominal dimensions are given in inches.

RBC® Thin Section Ball Bearing, Type-A Angular Contact, Series: KG Series, 10 in Bore Dia, 12 in Outside Dia, 1 Row, 1 in W, Open Closure, 60190 lb, 52100 Steel Bearing, Brass/Composite Cage, 1820 rpm Maximum, -65 to 250 deg F, Uncoated

• Lightweight
• High stiffness
• Small cross section
• Multi load capabilities
• Variety of cross sections and sizes
• Modified and custom bearings
• Not recommended for low torque applications
• The A-type bearing should never be used alone to support moment loads or reversing axial loading
• Two A-type bearings are often used as a duplex pair
• Large diameter
• 1-piece ring, circular pockets separator
• Round bore
• 30620 lb dynamic/60190 lb static
• C0 clearance

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RBC_JA020CP0RBC_Catalog.pdf
