Timken® 2MMVC9306HXVVSULFS637 2MMVC9306HXVVSULFS637 FAF
Send NoImagePrint
  1. pin-int

Timken®
2MMVC9306HXVVSULFS637

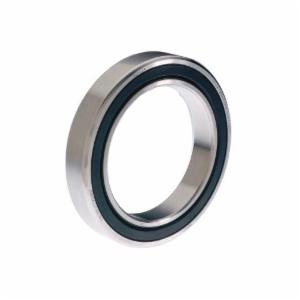

Timken® 2MMVC9306HXVVSULFS637 2MMV9300HX Light Duty Super Precision Angular Contact Ball Bearing With Ceramic Ball, 30 mm Dia Bore, 47 mm OD, 1 Row, 9 mm W, 15 deg, 4050 N Dynamic/2135 N Static Load

  • Manufacturer: Timken
  • Brand: Timken®
  • BSC Item#: 2MMVC9306HXVVSULFS637 FAF
  • MPN: 2MMVC9306HXVVSULFS637
  • UPC: 087796230392
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

2MMV-HX VV possess all of the high-speed advantages of the HX but with true high-speed seals. These bearing seals protect lubricant from outside contaminants while ensuring internal lubricant retention, extending service life significantly.

Timken® Super Precision Angular Contact Ball Bearing, Light Duty, Series: 2MMV9300HX, 30 mm Bore, 47 mm OD, 1 Rows, 9 mm Width, 15 deg Contact Angle, Double Seal Closure, 4050 N Dynamic/2135 N Static Load, Phenolic Cage, 43080 rpm Maximum

  • Single and double-row ball screw
  • Very high-speed
  • High accuracy and stiffness
  • Low operating temperature
  • Low noise and vibration
  • Angular contact low shoulder on both inner and outer-ring
  • Kluber Isoflex NBU 15 grease lubricant
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_3M205WOP8PRBDBE8350_Catalog.pdf
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_2MMVC9306HXVVSULFS637_Specification_Sheet.pdf
Standard/Approvals      :      ABMA ABEC 7/9 Certified
Application      :      High Speed Internal Grinding Spindle, Ultra Precision Surface Grinding Spindle, Precision Surface Grinding Spindle, Heavy Duty Precision Boring Spindle, High Speed Precision Boring Head, Ultra Precision Grinding Workhead, Single Bar Machine, Precision Jig Boring Spindle, Super Precision Lathe Headstock, High Speed Motorized Router and Precision Vertical Milling Spindle
