Warner Electric®

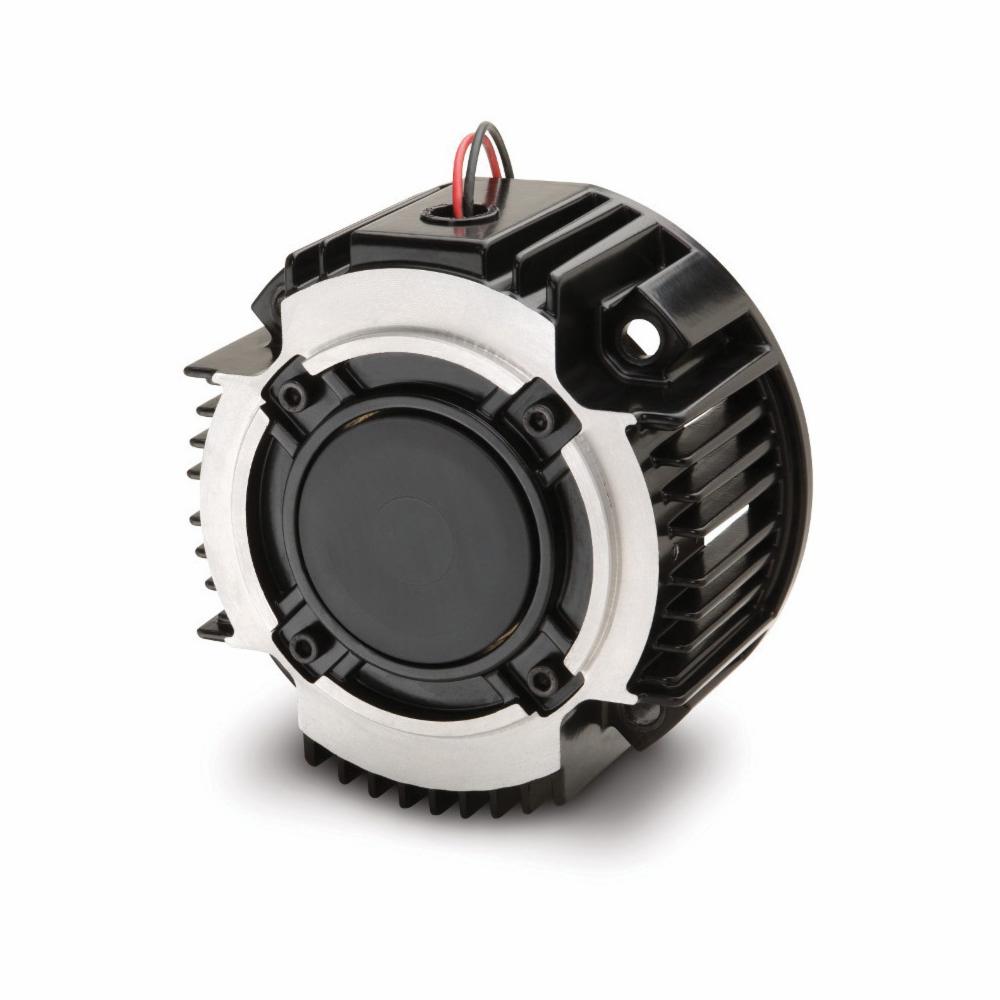

5370-169-254

Warner Electric® electrically released electro modules are available in three styles. The EM-MBFB motor brake module mounts to the back of a double shafted motor. This module (5370-169-254) features standard friction faces, a hollow bore/end cap and a 90 VDC.

Warner Electric® Electro Module Motor Brake, Standard, Series: EM-MBFB, 5/8 in Bore, 3.368 in OD, 3.368 in Overall Length, 21 ft-lb Torque, 90 VDC, 3600 rpm Maximum, C-Face Mounting, Vented Enclosure

• Designed for dynamic stopping operation
• Brake automatically engages when power is turned off
• High cycle rate capability
• Never needs adjustment and automatically compensates for wear
• Powerful permanent magnets provide braking force
• Prepackaged and preburnished UM version
• Rugged precision cast housing
• NEMA C-face compatible mounting
• Holding torque provided by powerful ceramic type permanent magnets
• Complete torque control for soft starts and stops or instantaneous engagement
• Precision cast housing
• Single armature design
• Complete torque control
