Martin 78C10

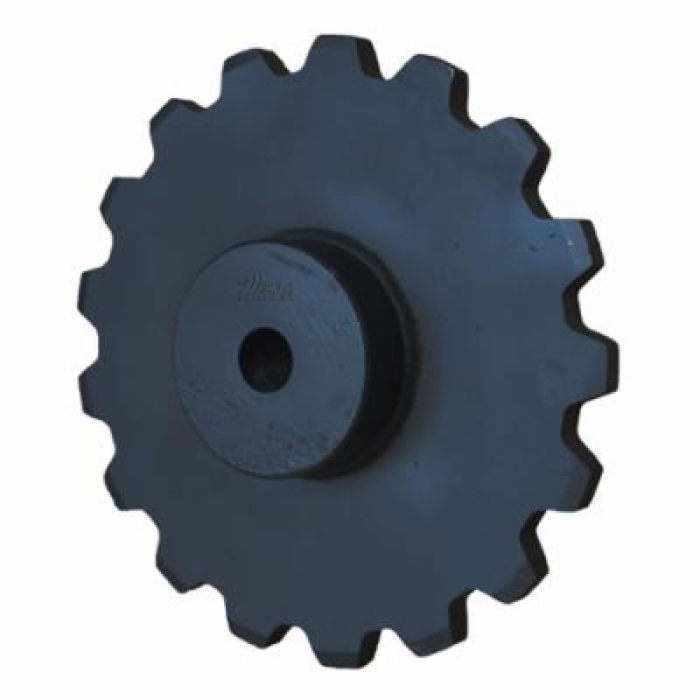

Martin Accu-Torch® 78C10 Flame Cut Stock Bore Type C Engineering Sprocket, 1-1/4 to 3-1/4 in Dia Bore, 9.03 in OD, 78 Chain, 10 Teeth, 2.609 in Pitch, 8.443 in Dia Pitch, Steel
- Manufacturer: Martin Sprocket & Gear
- Brand: Martin
- BSC Item#: 78C10
- MPN: 78C10
- UPC: 697950069173
- Min. Order Qty: 1
- Qty. Interval: 1 Availability: Call for Availability
-
Login to see price
Martin Accu-Torch® steel sprockets are available for virtually all engineering class chains in style A, B, and C. Also available as split with welded hub and split or solid detachable hub. They can also be furnished as shear pin type. Where possible please specify chain number, pitch diameter, number of teeth, bore and keyway size, and hub style required. Accu-Torch® sprockets are not intended to replace cut tooth roller chain sprockets.
Martin Accu-Torch® Engineering Sprocket, Flame Cut Stock Bore Type C, 1-1/4 to 3-1/4 in Bore Dia, 9.03 in Outside Dia, 78 Chain, 10 Teeth, 2.609 in Pitch, 8.443 in, 5-1/4 in Hub Dia, 3-7/8 in Length Through Bore, Steel
| Type | : | Flame Cut Stock Bore Type C |
| Bore Diameter | : | 1-1/4 to 3-1/4 in |
| Outside Diameter | : | 9.03 in |
| Chain Size | : | 78 |
| Number of Teeth | : | 10 |
| Pitch | : | 2.609 in |
| Pitch Diameter | : | 8.443 in |
| Hub Diameter | : | 5-1/4 in |
| Length Through Bore | : | 3-7/8 in |
| Material | : | Steel |
Catalog
| Application | : | For 7188, 433 1/2, 488, 578 R, 588 R, 75, 78, 81X, 87R, 88, 988, C 188, H 74, H 75, H 78, H 78 LR, (14, 18 teeth only), H 78 RT, H 78 SR, H 79, IS 880, IS 881, IS 882, LXS 881, LXS 882, LXS 886, LXS 887, R 588, R 778, RR 588, RR 778, S 188, S 78, SS 188, US 278 R, US 881, US 882 and XS 578 chains |
