Fafnir®
KCJT1 PS

Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications.

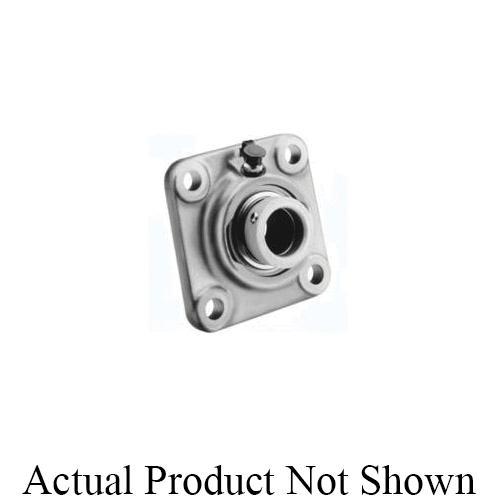

Timken® Fafnir®, KCJT1 PS, Flange Mount Ball Bearing Unit, Series: KCJT, 1.003 in Bore, 3-57/64 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 4-57/64 in Overall Length/Diameter, 1-9/16 in Overall Depth, 1.253 in Overall Height, Set Screw Locking Device, Stainless Steel Bearing, 240 lb Static Load, 425 rpm Maximum, 320 deg F

• The 300 series stainless steel insert provides the highest resistance to corrosion in the industry
• This unit is used for the ready-to-eat portion of the process
• Loads are lighter and corrosion protection is the primary concern
• Specifically designed for light loads and low-speeds and has stainless steel set screws
• The durable, corrosion-proof polymer housing has stainless steel crush bushings in the mounting holes and a stainless steel grease fitting with nylon cap
• Polymer resists a broad range of acids and alkalis, as well as steam and continuous temperature up to 121 deg C (250 deg F) and brief exposure up to 160 deg C (320 deg F)
• The polymer strength exceeds static capacity of bearing housing retains proper bearing fit and resists shock loads
• The flush base contains no voids where bacteria can collect

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_GVFD1_1_2_Catalog.pdf
