Browning®
767302

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.

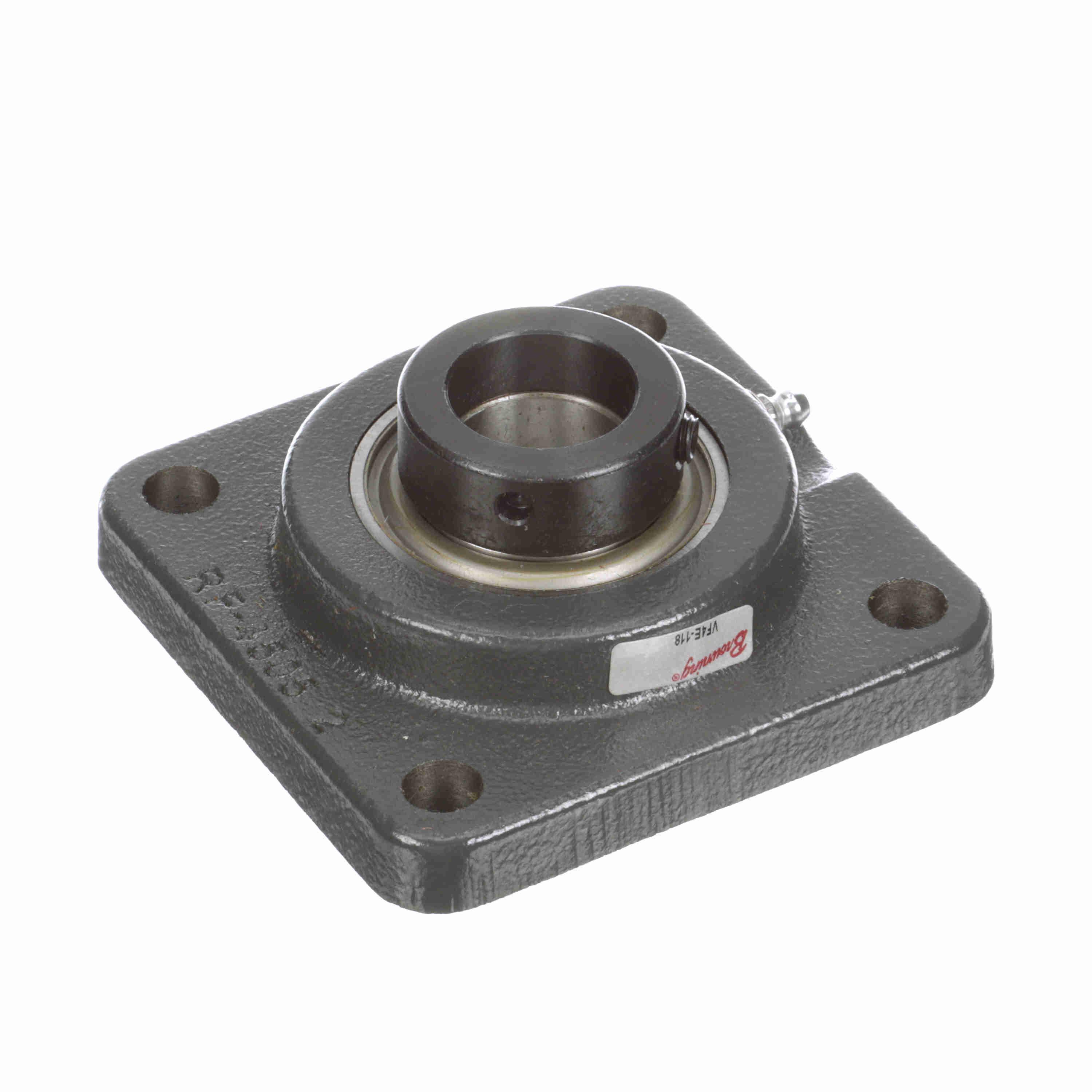

Browning® Flange Mount Ball Bearing Unit, Intermediate Duty Non-Expansion Round/Straight Bore, Series: VF4E 100, 1-1/8 in Bore, 3-1/4 in Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 4-1/4 in Overall Length/Diameter, 1-47/64 in Overall Depth, 4-1/4 in Overall Height, Eccentric Collar Locking Device, Steel Bearing, Nitrile Rubber Seal, 4381 lb Dynamic/2567 lb Static Load, 3000 rpm Maximum, -20 to 200 deg F, Gray Painted

• Eccentric locking design incorporates a precision eccentric collar to mate with the inner ring extension for shaft hold
• An anti-rotation rivet prevents outer ring creep or rotation within the housing
• Zone hardened inner race
• 52100 steel insert
• Powder coat epoxy cast iron housing
• Eccentric locking designed for locking in direction of rotation
