Sealmaster®
700761

Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing, and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction. Depending on your preference, these bearings are available in both inch and metric shaft sizes with a wide variety of cast iron, stamped steel or rubber mount housings, sealing and lubrication options or industry specific solutions.

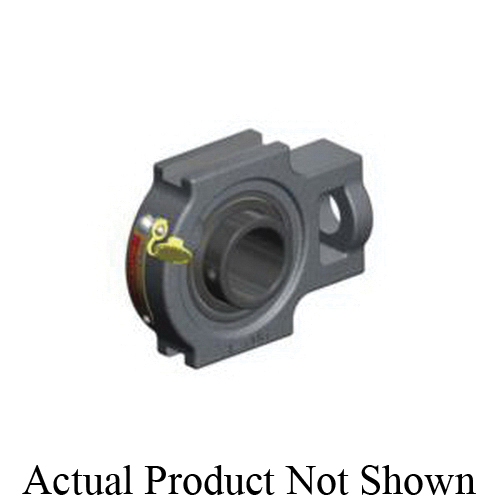

Sealmaster® Take-Up Ball Bearing Unit, Non-Expansion Standard Duty, Series: ST Series, 2-15/16 in Bore Dia, 9-1/8 in Length, 3-3/8 in Width, 6-9/16 in Height, 14839 lb Dynamic, For Use With: STH-47 Center Pull Take Up Frames, Steel Bearing, -20 to 220 deg F, Uncoated

• Take up housing type
• Seal flinger
• The Sealmaster exclusive locking pin and dimple system provides a direct lubricant path into the bearing cavity and ball path instead of around a lubrication groove

• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_700171_Installation_Manual.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_700726_Specification_Sheet.pdf
