Gates® Power Transmission
A25

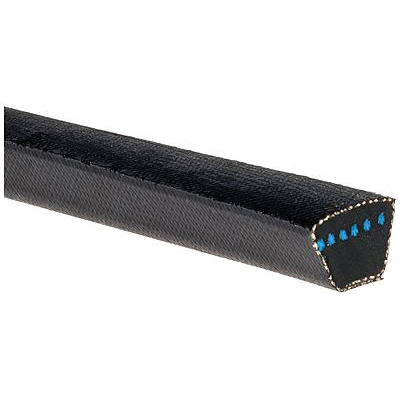

The wrapped classical section Hi-Power V-belt has a long reputation for reliability on agricultural and industrial applications. The arched top of the Hi-Power belt provides superior strength to prevent dishing and distortion of the tensile section. The cords are properly aligned, each of them carrying its full share of the load.

Gates® Power Transmission V-Belt, Classical Heavy Duty, Series: Hi-Power® II 9002, A Section Size, 1/2 in Top Width, 27 in Outside Length, 5/16 in Thickness, 1 Ribs, -40 to 160 deg F, EPDM, Polyester Reinforced

• Flex bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
• Gates® curves provide proper cord support and full contact with the sheave-groove for uniform loading, uniform wear and increased belt life
• The Flex-Weave® cover is constructed for longer cover life, providing extended protection to the core of the belt from oil, dirt and heat
• Static conductive (ISO 1813) and can as such be used in the conditions described in the directive 2014/34/EU- ATEX
• Belt edge is machined for even sheave groove contact resulting in smoother running, less slip and wear
• Match system sizes meet gates uniset tolerances, they can be installed without matching
• High quality rubber compound protects the belt against heat, ozone and sunlight
• The belt will not catch fire from heat buildup, even with severe slippage
• Long belt life reducing replacement and maintenance costs
• Excellent performance/cost ratio
• Reliability and efficiency

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Gates_9002-2023_Catalog.pdf
