Timken®
202KRR3

Hex bore bearings are designed for either outer or inner ring rotation in low-speed, moderately loaded applications such as farm machinery and conveyors. Their chief advantage is ease of mounting. Except for axial positioning by adjacent parts, no collars, setscrews or other external parts are required to lock the inner ring to the hex shaft.

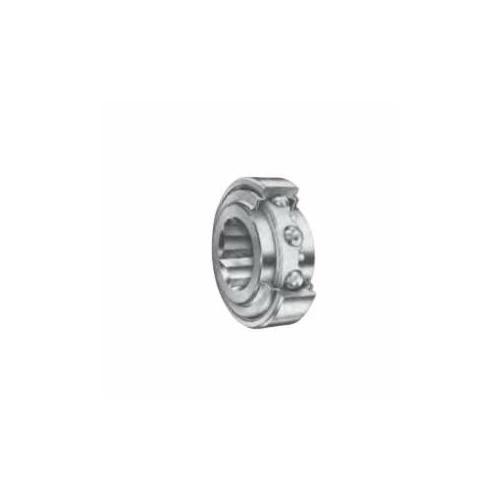

Timken®, 202KRR3, Deep Groove Radial Ball Bearing, Hex Bore Non-Relubricatable, Series: 200, 0.564 in Bore, 1.378 in OD, 1 Rows, 0.512 in Width, Double Seal Closure, 1900 lb Dynamic/830 lb Static Load, Steel Bearing, Rubber Seal, 6890 rpm Maximum, -50 to 120 deg C, Uncoated

• Tolerances of the hex bore are suitable for mounting on cold rolled hex shafting
• Utilizes the R-type shroud seal

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fafnir_204PY3_Catalog.pdf
