LEESON®
116487.00

The LEESON® brand spans more than 6000 stock AC and DC motors gearmotors and variable speed control solutions. All are built for rugged commercial and industrial applications. Whether you need thousands of motors for OEM applications or a single replacement motor, count on our twenty three stocking warehouses in the USA to get it there right when you need it. Whether you need a motor that withstands extreme temperatures, utilizes a unique mount or other requirement, we have solutions. Look to LEESON® brand motors for innovative custom solutions, and personalized service through your local sales office.

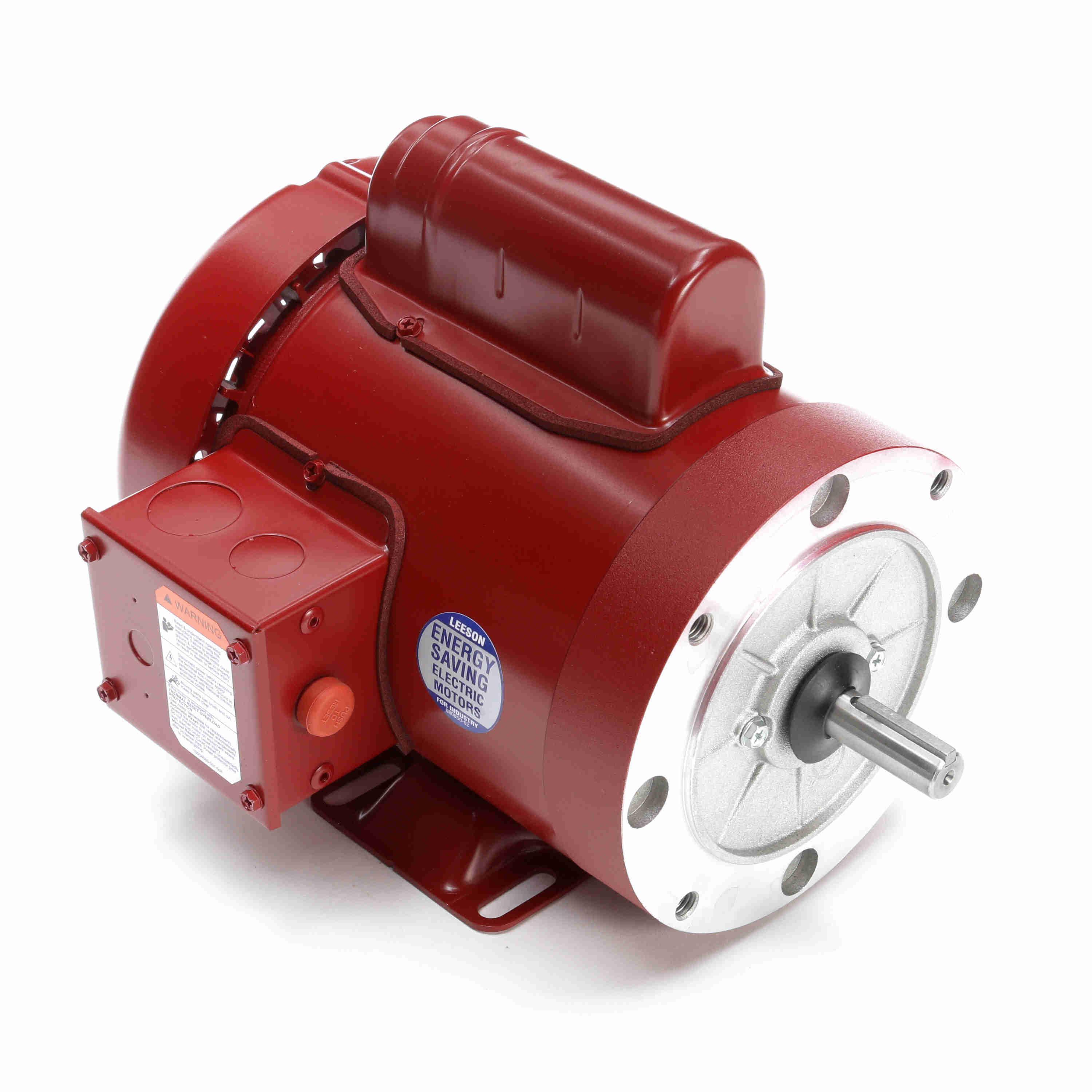

LEESON® AC Motor, Agricultural Duty C-Face High Torque, Elevator Motors, Farm Duty Motors, General Purpose AC Motors, Fan & Blower Motors, OEM Replacement Motors Application, 3/4 hp, 115/208/230 VAC, 10.8/5.4 A, 60 Hz Frequency, 1725 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 56C Frame, 5/8 in Dia Shaft, CCW Rotation, 1.149 Service Factor, Ball Bearing, 98.47 ft-lb Torque, 40 deg C, Insulation Class: Class B, Steel, 11.31 in L Dimensions

• Gasketed capacitor cases and conduit box covers
• Meets or exceeds NEMA service factors
• 1-phase and 3-phase designs
• Low temperature manual overload protected
• High and extra high starting torque ratings
• Heavy-duty, rolled steel construction ensures motor durability
• Permanently lubricated sealed bearings extend the lifetime of the motor
• Capacitor start design optimizes motor torque and efficiency performance
• Operational at 115/208-230 V at 60Hz.
• Automatic reset thermal(as noted) protector prevents overheating
• Class B insulation protects motor for a maximum temperature rating
• Continuous duty cycle design allows maximum operation at the rated power specifications
• Nameplate image may vary from actual product

• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/LEESON_116487_00_Specification_Sheet.pdf
