Browning®
767540

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric, or BOA concentric locking collar. The contact seal, with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction. Depending on your preference, these bearings are available in inch and metric bore with a wide variety of cast iron, stamped steel or rubber mount housings or specific industry solutions as illustrated on the pages to follow.

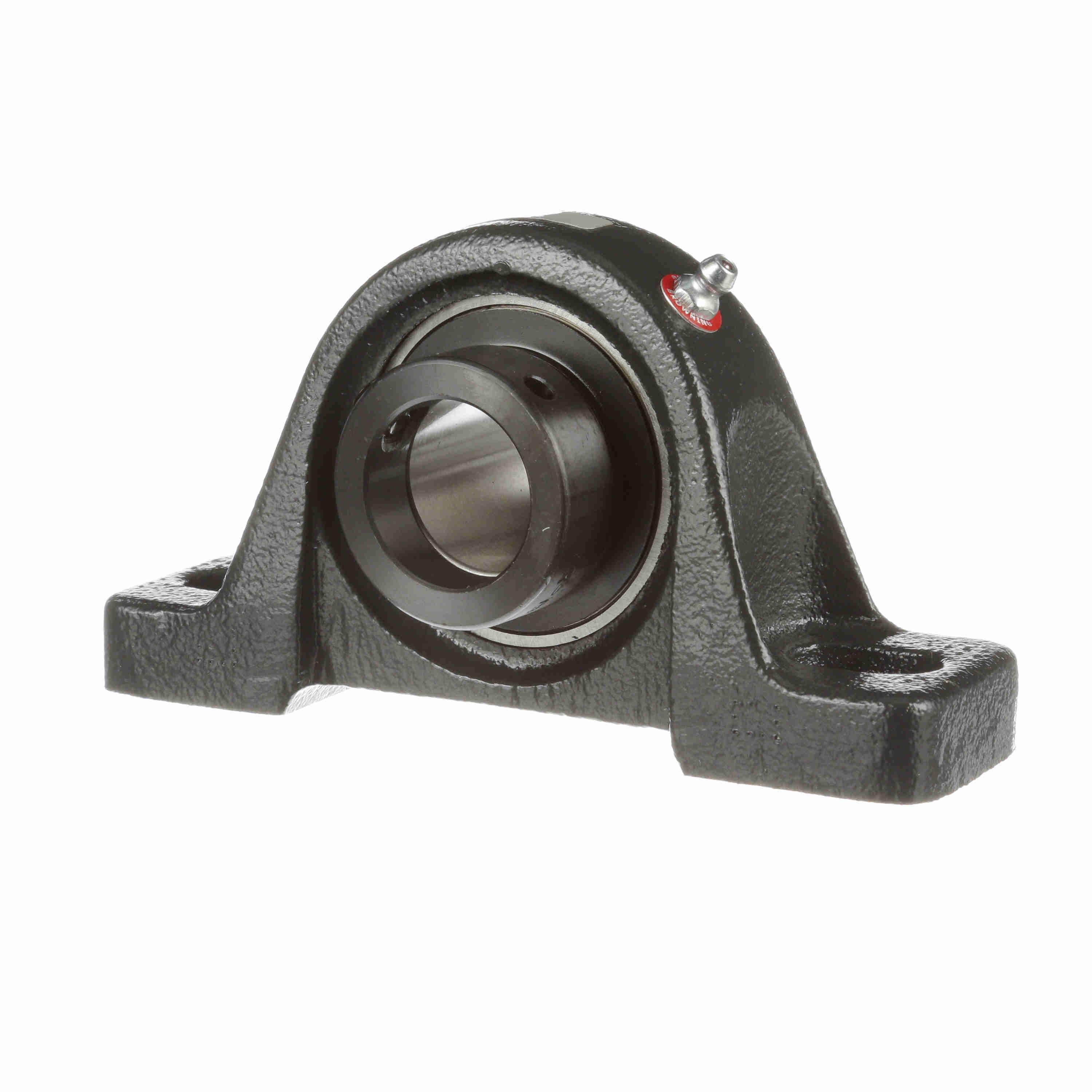

Browning® Pillow Block Ball Bearing, Normal Duty, Series: VPE 200, 1-3/16 in Bore, 4-5/32 to 5-3/32 in Bolt Center-to-Center Length, 1-11/16 in Base to Bore Centerline, 6-3/16 in Overall Length, 3-9/32 in Overall Height, Two-Bolt Base Mounting, Round Bore, 1-3/4 in Base Width, Eccentric Locking Device, Single Lip Contact with Flinger Seal, Non-Expansion (Fixed) Expansion, 4381 lb Dynamic/2567 lb Static Load, -20 to 200 deg F, 4500 rpm Maximum, Cast Iron, Gray Painted

• Eccentric locking design incorporates a precision eccentric collar to mate with the inner ring extension for shaft hold
• The rugged base design provides an excellent mounting foundation, this is integral to prevent sheet metal "buckling"
• Positive contact molded nitrile rubber contact seal with an auxiliary flinger element standard
• An anti-rotation rivet prevents outer ring creep or rotation, within the housing
• Zone hardened inner race
• Spherical outer diameter bearing insert
• 52100 steel insert
• Alemite fitting lubrication
• Nylon retainer
• Powder coat epoxy cast iron housing
• Eccentric locking designed for locking in direction of rotation
