Micron®
64-318252-E177

In addition to standard NEMA frame sizes, Micron® NemaTRUE™ planetary gearheads are now available in three metric sizes 60, 90 and 115 mm and with the innovative RediMount™ adapter kit, which allows for quick and error-free mounting to any servo motor. Micron® TRUE Planetary™ gearing technology allows for highly efficient and precise torque multiplication for servo motor applications. The NemaTRUE™ has many ratios in stock for immediate delivery.

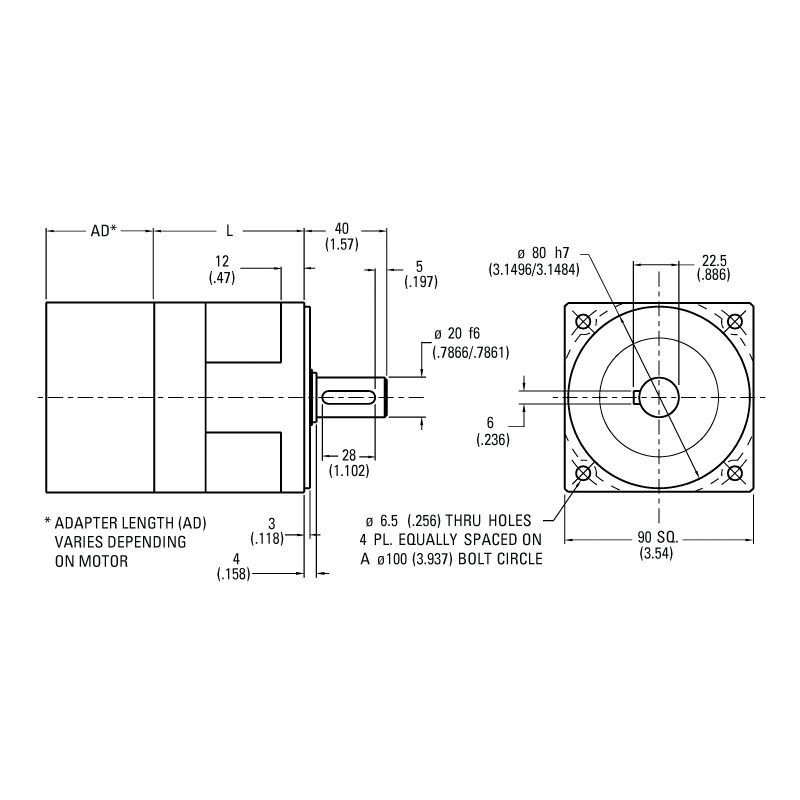

Micron® TRUE Planetary™ Spur Gearhead, Cyclical-Duty, Series: NemaTRUE™, 7:1 Gear Ratio, RediMount™ Motor Mounting System Input, Single Shaft Output, 20 mm f6 Output, 571 rpm Output Maximum Speed, 4000 rpm Input Maximum Speed, 34.5 N-m, 13 arcmin Backlash, 28 mm L x 6 mm W x 22.5 mm H Keyway, 93 % Efficiency, Grease Lubrication, In-Line Vertical Mount, Anodized Aluminum, 90 mm W x 90 mm H

• RediMount™ system provides error-free motor installation
• Sealed deep groove ball bearings provide high radial load carrying capability
• HRC 55-60 steel gears provide superior wear resistance and increased backlash integrity
• Anodized aluminum housing reduces weight and prevents corrosion
• Adapter length (AD) may vary depending on motor
• Stainless steel output shaft
• Size 90 frame
• RM090-203 special RediMount™ kit
