Boston Gear® RA1022 RA1022 BGW
Send NoImagePrint
  1. pin-int

Boston Gear®
RA1022

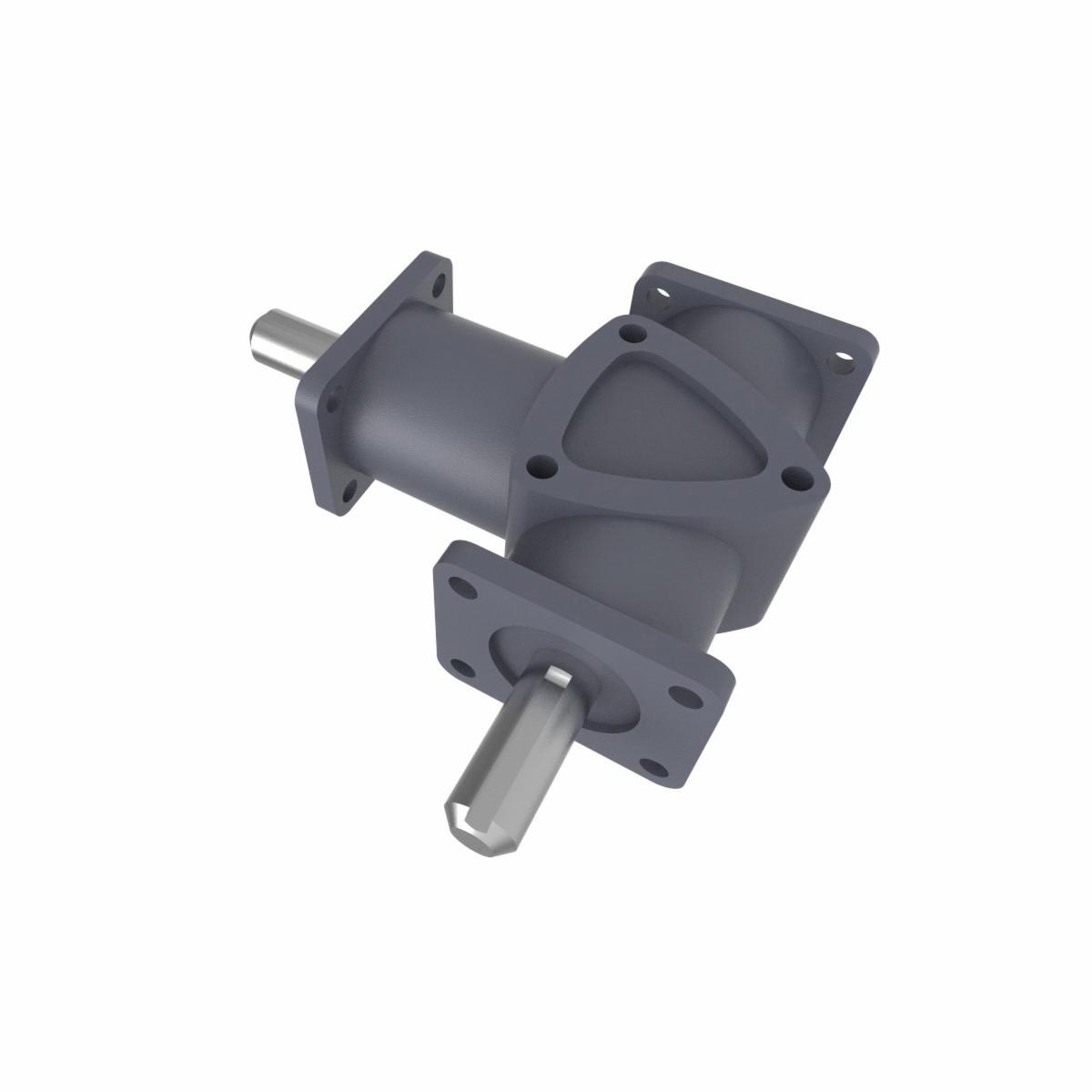

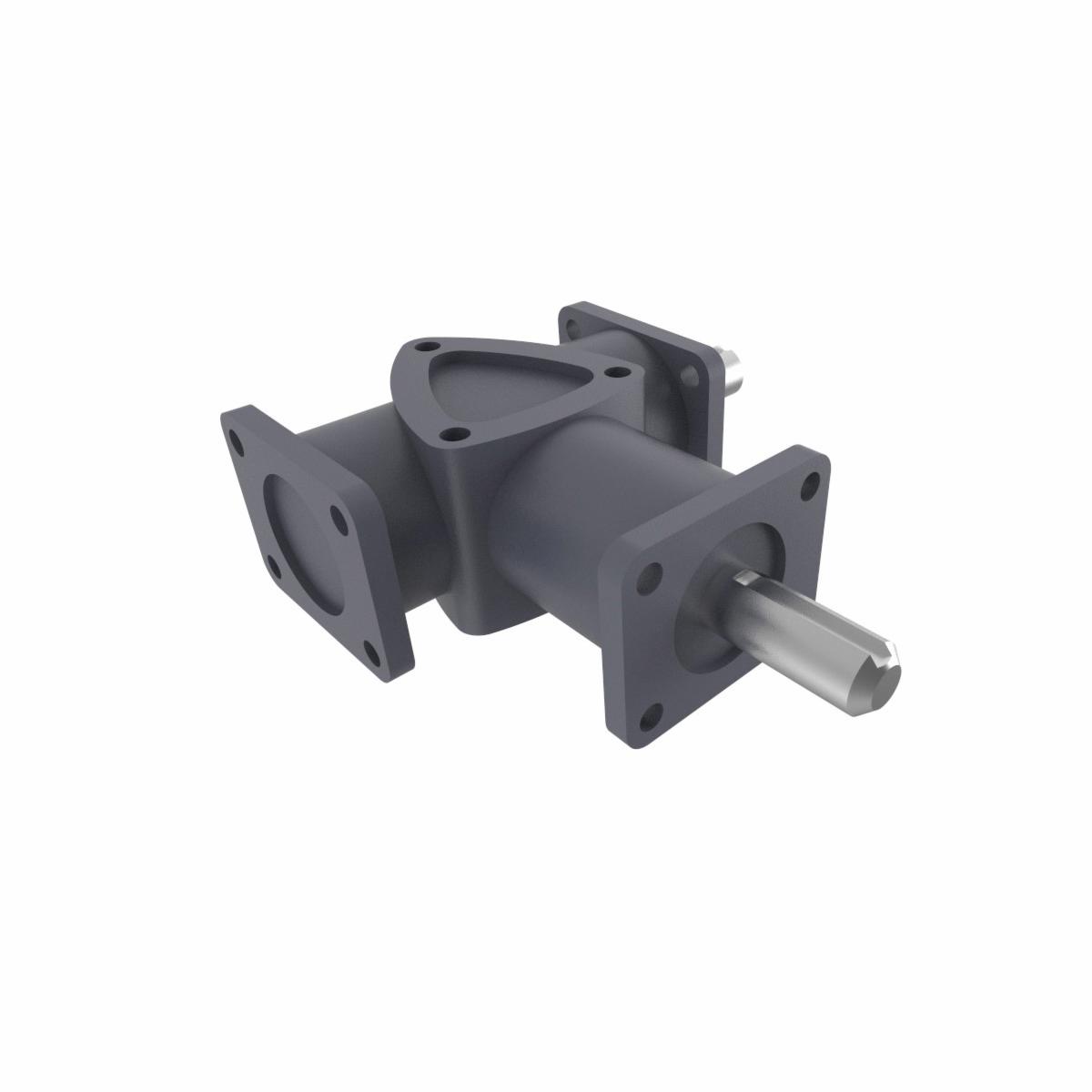

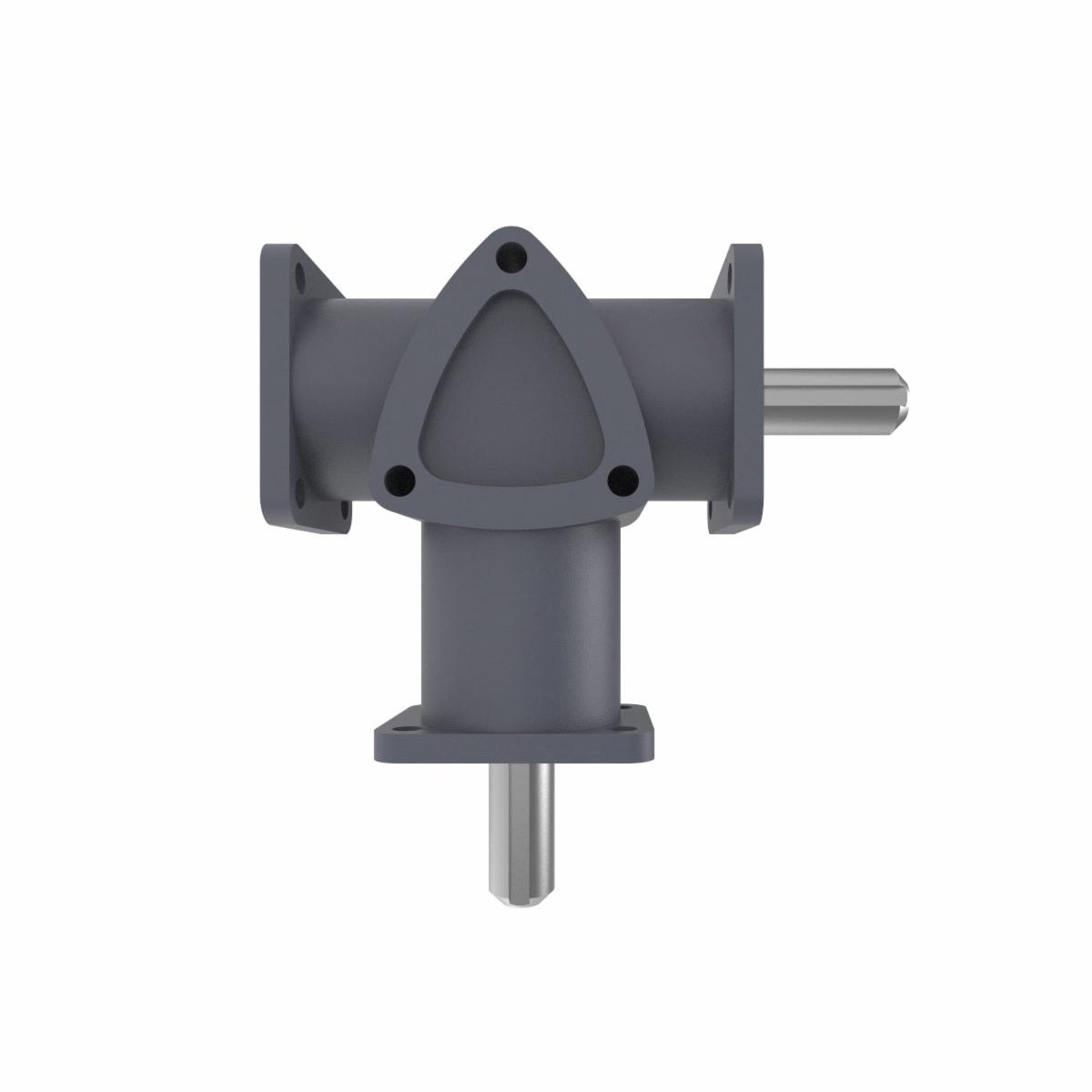

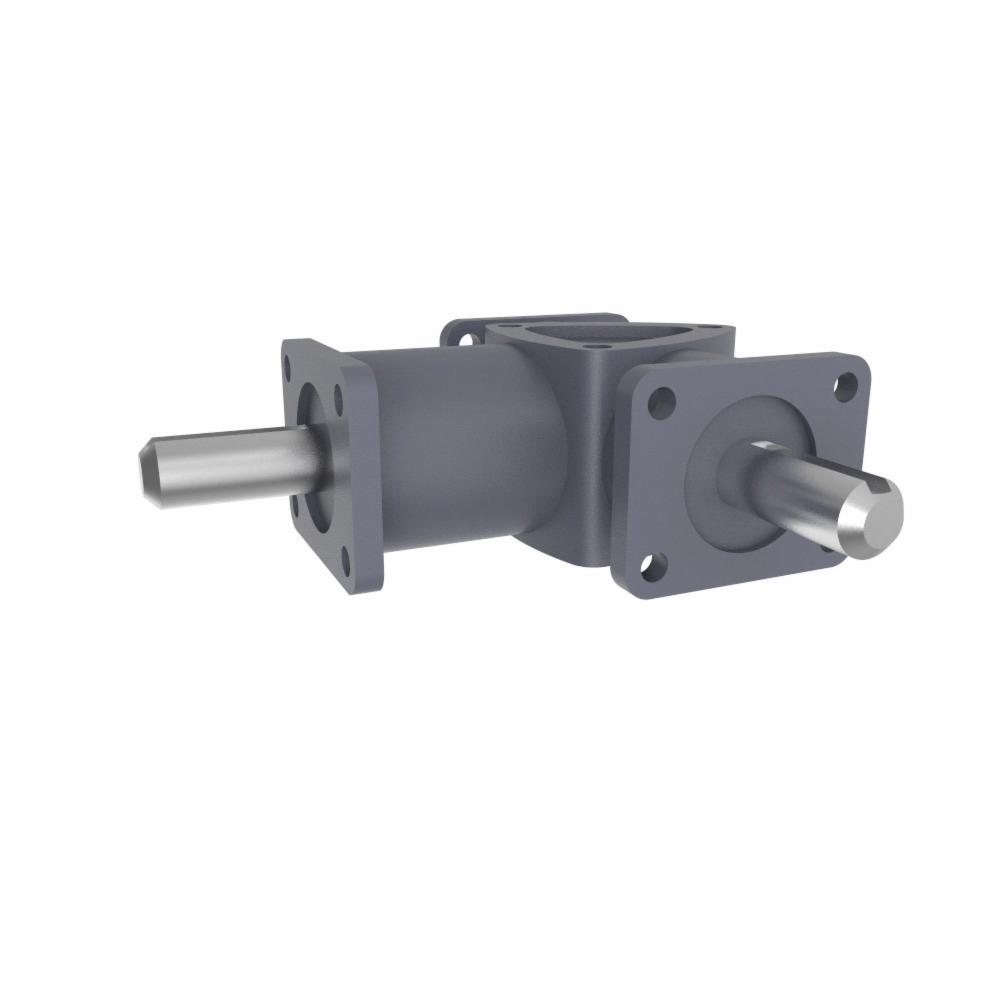

Boston Gear® RA1022 RA Series Right Angle Spiral Bevel Gear Drive, Solid Shaft Input, Solid Shaft Output, 0.6 hp, 2:1 Gear Ratio, 875 rpm Maximum Output, 40 in-lb Torque Rating

  • Manufacturer: Regal Rexnord
  • Brand: Boston Gear®
  • BSC Item#: RA1022 BGW
  • MPN: RA1022
  • UPC: 781711494219
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Boston Gear®'s Right 90 series spiral bevel gear drives are designed for high efficiency, quiet operation and long service life. Housings are made of aluminum alloy with all mounting surfaces precision machined. Available in 1:1 and 2:1 ratios, two-way or three way shaft configurations and horsepower ratings from 0.1 to 3.5.

Boston Gear® Right Angle Spiral Bevel Gear Drive, Series: RA Series, 2:1 Gear Ratio, 0.6 hp, Solid Shaft Input, Solid Shaft Output, 5/8 in Input, 5/8 in Output, 875 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 40 in-lb, 3/16 x 3/32 in Keyway, CCW, Klubersynth UH1 6-460 Lubrication, Aluminum Alloy, Standard Painted, 7-1/4 in L x 2 in W x 6.03 in H

  • Spiral bevel gear drives are designed for high efficiency, quiet operation and long service life
  • Shafts are heat treated, alloy steel mounted on heavy duty and tapered roller bearings
  • Housings are made of cast iron, precision machined to assure accurate, permanent alignment of the gears
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Boston_Gear_1118AF12_Catalog.pdf
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Boston_Gear_S832BR100KM1_Specification_Sheet.pdf
Standard/Approvals      :      PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.
