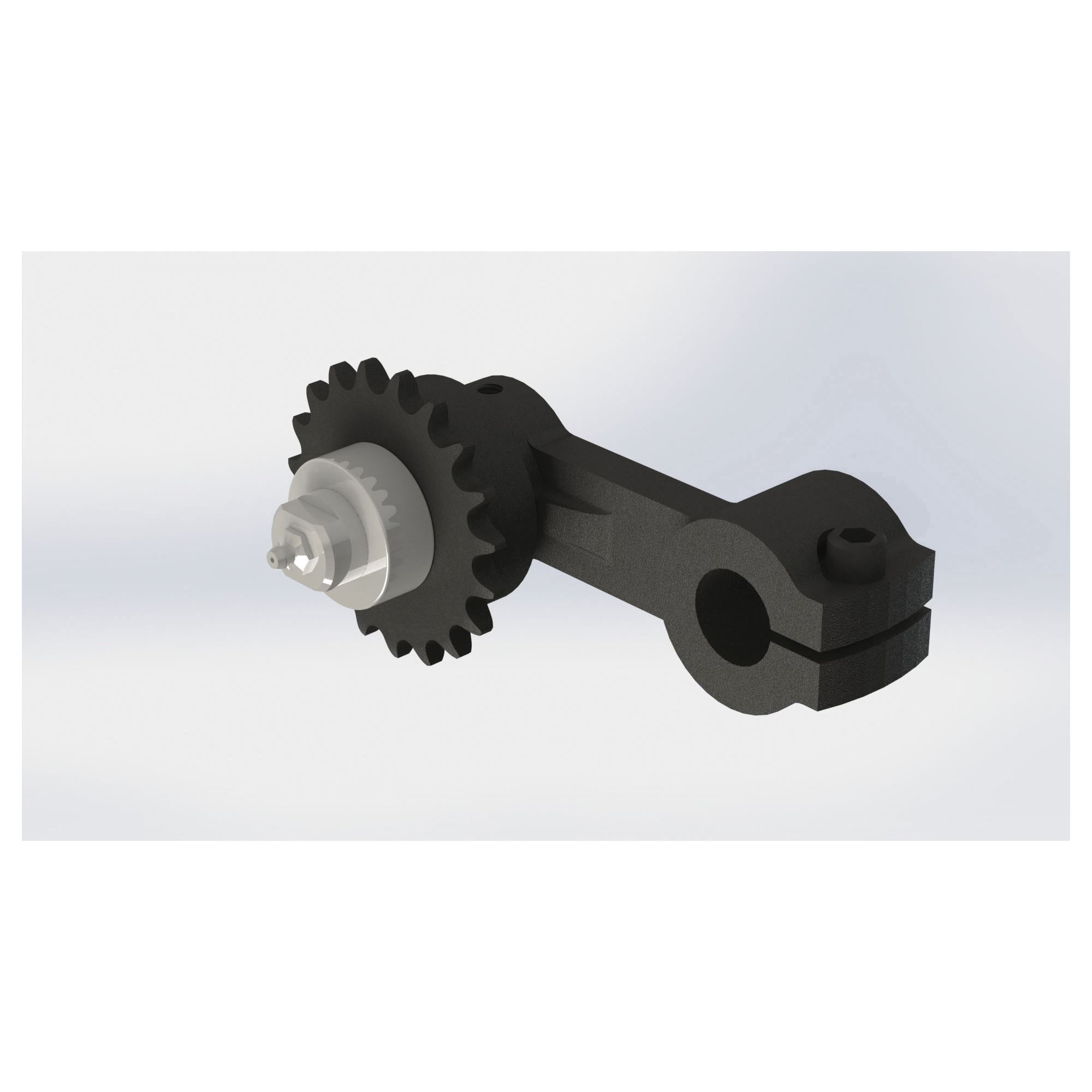

Brewer Universal Drive Tensioner
AM-3/4-10

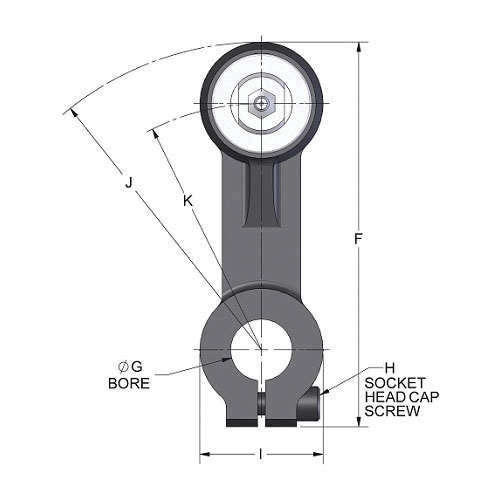

The Universal Drive Tensioner shaft mounted series is ideal for locations where it is impractical to bolt a tensioner to the frame of a machine. This drive tensioner can be easily located at any point on a shaft, at the same time permitting positioning at any point on a 360 deg arc. A split in the base of the arm, along with a locking screw, permits easy movement and tight clamping on the shaft. The shaft mounted tensioner when used in pairs, makes a practical snubber for head and tail pulleys.

Brewer Universal Drive Tensioner Drive Tensioner, Medium Shaft Mount, Series: A Series, For Use With: Model NO2, NO3 and NO4 1 in Dia 3/4-10 Thread Idler Shafts, 3/8 in Bolt, Cast Iron, 6-1/4 in L x 2 in W

• Split in base of arm
• Locking screw
• Tight clamping on shaft
• Single adjusting tensioner
• 1-5/8 in THK base
