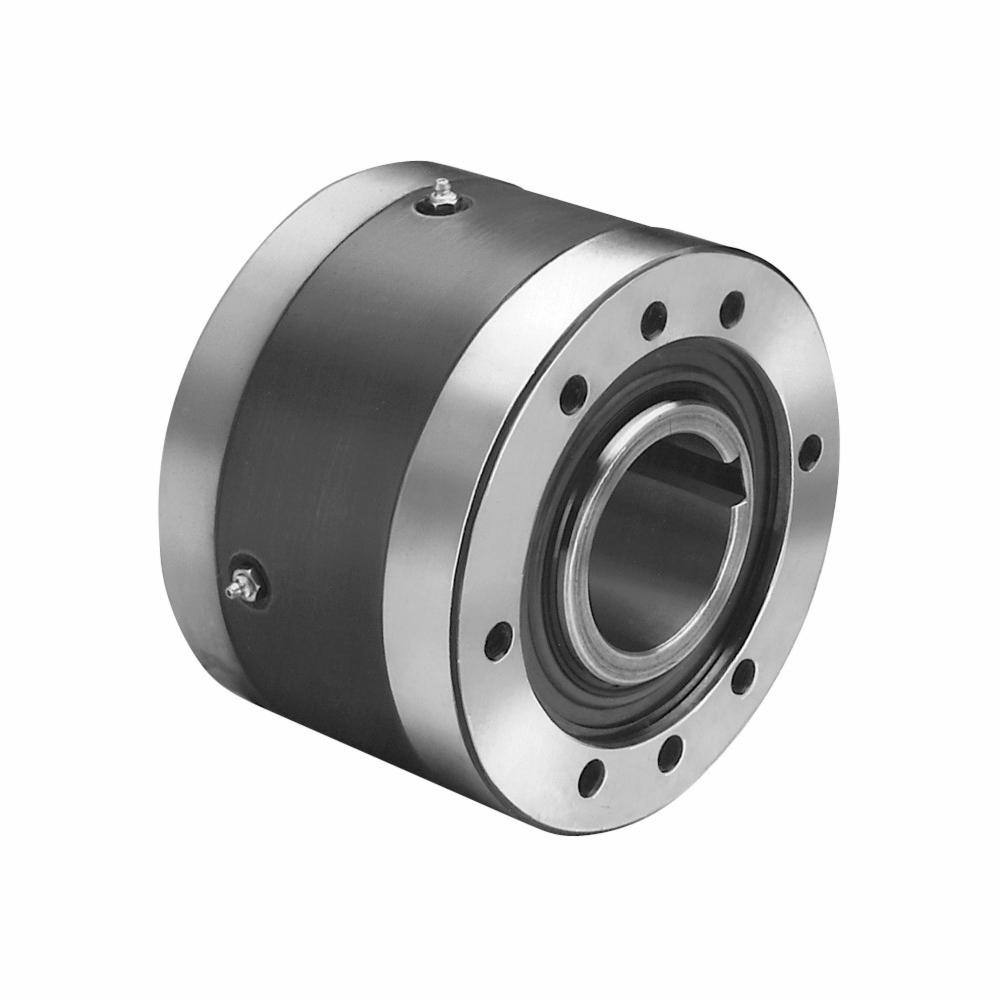

Formsprag Clutch®
CL40933-60

FSO clutches are used on multi-speed, one direction only conveyors for non-destructive accommodation of speed differentials in powered rollers and belt drive systems. The FSO clutch allows the slower speed zone to over-speed during the transitional period without back driving the slower drive system. These clutches are available with FDA approved food grade greases and a variety of surface coatings required for wash down duty.

Formsprag Clutch® Formchrome® Sprag Clutch, Series: FSO-900, 5 in Bore, 12 in OD, 6.38 in Overall Length, 18000 ft-lb Torque, 1350 rpm Inner/500 rpm Outer Race Maximum, Vertical (Zero-U) Mounting

• Truly rebuildable to reduce long term operating cost
• Outer diameter of outer race is ground for use as a piloting or mounting surface for attaching parts
• Formsprag Clutch® recommends the use of our HPI series for indexing rates in excess of 150 strokes per minute or indexing angles in excess of 90 deg
• Grease lubrication

• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Formsprag_Clutch_CL4026766_Specification_Sheet.pdf
• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Formsprag_Clutch_CL408521302_Manual.pdf
• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Formsprag_Clutch_HSB7503000_Catalog.pdf
