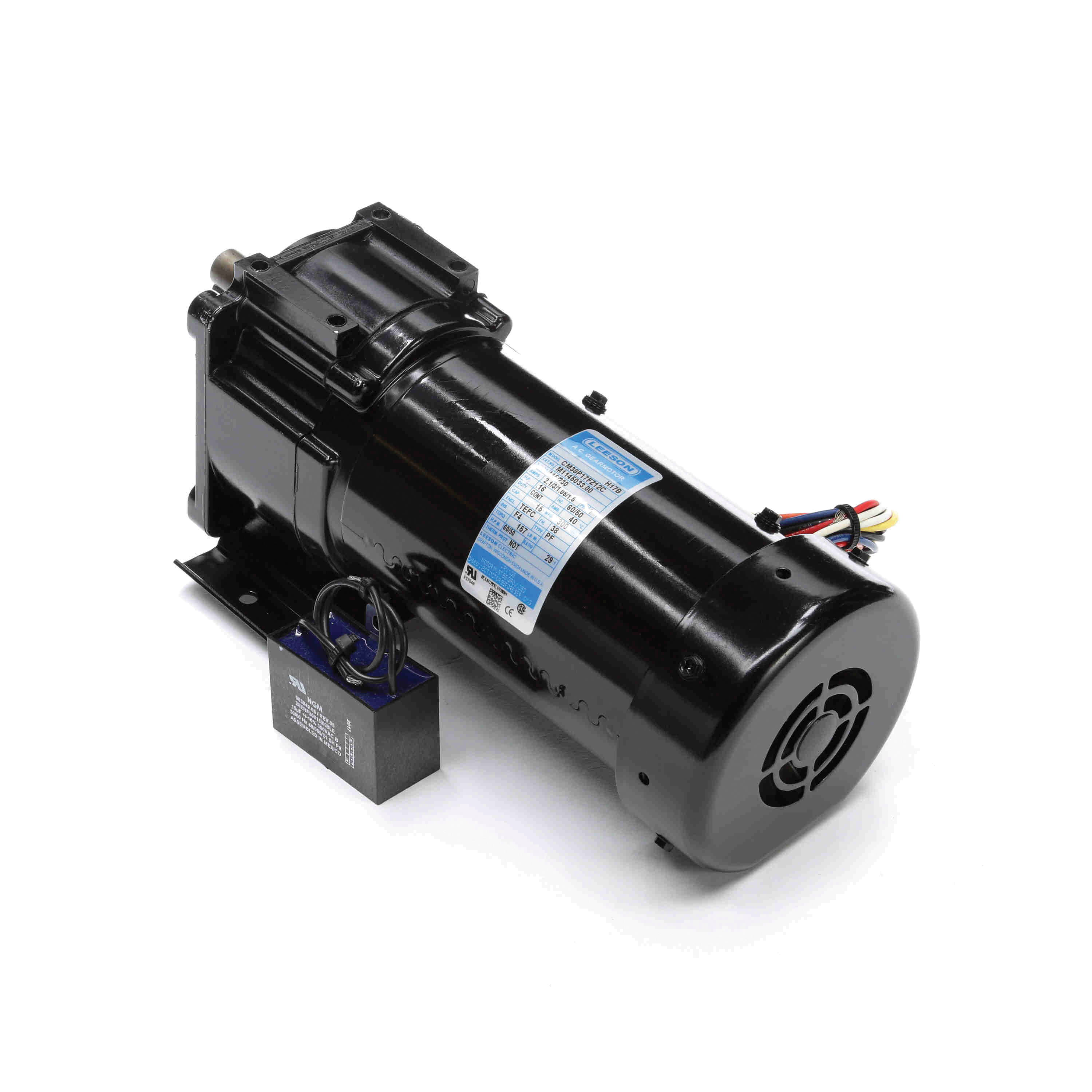

LEESON®
M1145034.00

LEESON® Gear Motor, Parallel Shaft Continuous Duty, Series: P240, 115/230 VAC, 3/1.5 A Full Load Amperage, 0.16 hp, 60 Hz Frequency, 1 ph, 90 rpm Maximum, 0.63 in Shaft Diameter, 1-1/2 in Shaft Length, Reversible Rotation, 103 in-lb Torque, 19:1 Gear Ratio, Helical/Spur Gear, Permanent Split Capacitor Motor, Ball Bearing, 237 lb Overhung Load, Special Mounting, 40 deg C Ambient, Class F Insulation, Totally Enclosed Fan Cooled Enclosure, Steel Housing Material, 12.13 in L x 5.13 in H Dimensions

• Permanent split capacitor design
• Precision machined in-line steel gears
• Lubrication is permanent semi-fluid grease and reducing possibility of leakage
• Output shafts have needle bearings for high load capacities
• Shafts are hardened steel
• Sub-fractional horsepower AC motors
• 500 Hz standard and 1000 Hz optional output frequency
