Lubriplate®

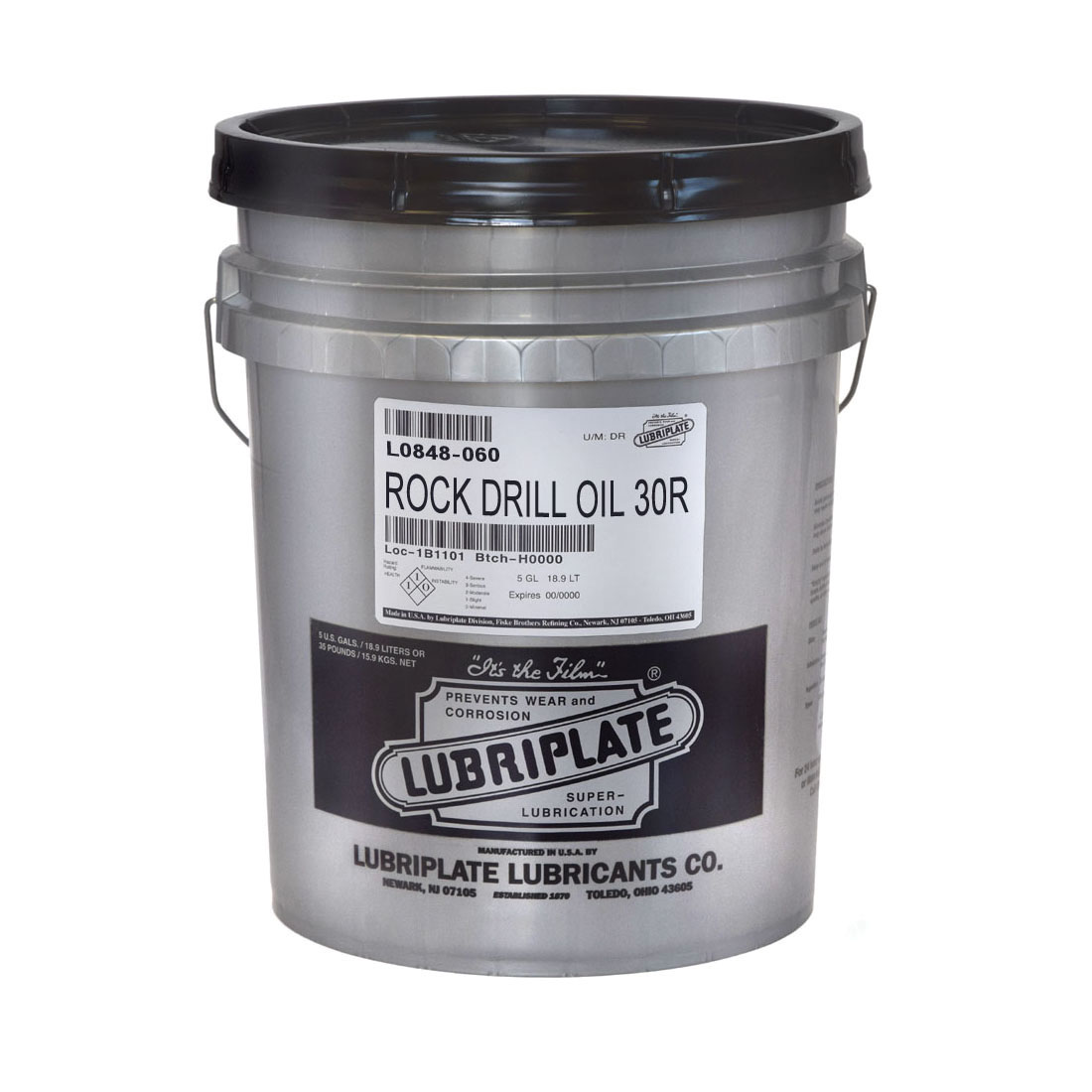

L0848-060

One of the most critical points of lubrication in mining and construction operations is the lubrication of rock drills of all kinds, both underground and aboveground, where either line oilers are used or where the reservoir is on the tool. Lubriplate® rock drill oils have proven their value with outstanding performance for several years under some of the most extreme operating conditions, lubricating rock drills, air hammers and other pneumatic tools. Lubriplate® rock drill 30-R is an SAE 30 grade recommended for most applications.

Lubriplate® Rock Drill Oil, Petroleum Based, Series: 30-R, 5 gal Container, Pail Container, 540 SUS at 100 deg F Viscosity, Liquid Form, Composition: Distillates, Hydrotreated Heavy/Light Paraffinic, Residual Oils, Solvent-Dewaxed, Amber, Mineral Oil Odor/Scent, SAE 30 Grade, 430 deg F Flash Point, Flammability: 1, 0.87 to 0.89 Specific Gravity

• Extreme pressure, more than 300,000 psi, as tested by gardner-denver weeks tester
• This high load carrying ability increases the life of the parts inside the drill, such as rifle bars, nuts and ratchet dogs, thereby lowering drill cost per foot
• It does not fog underground, thereby eliminating complaints from the miners of foggy or clouded goggles and breathing of dense oil-saturated air when working at the drill face
• It has good emulsion characteristics eliminating gumming in the machines, thereby increasing the footage that can be drilled in a similar length of time
• High viscosity index and good cold tests allow a more even feeding of oil to the drill, even under adverse temperature changes
• Line oilers can frequently be cut back, thus saving on oil consumption without sacrificing performance
• 67 SUS at 210 deg F viscosity
