Martin D12B23

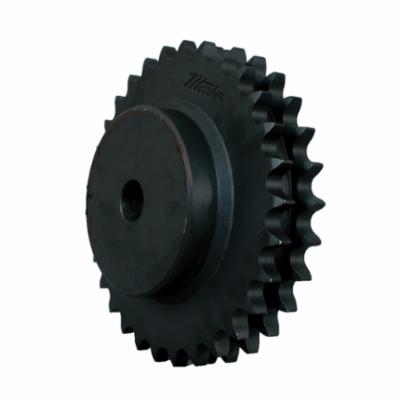

Martin D12B23 Double Strand Metric Solid Stock Bore Type B Single Roller Chain Sprocket, 20 mm Dia Bore, 151.65 mm OD, 12B-2 Chain, 23 Teeth, 19.05 mm Pitch, Steel
- Manufacturer: Martin Sprocket & Gear
- Brand: Martin
- BSC Item#: D12B23 MART
- MPN: D12B23
- UPC: 697950401430
- Min. Order Qty: 1
- Qty. Interval: 1 Availability: Call for Availability
-
Login to see price
Martin metric double strand solid construction sprockets have proper spacing between chain rows. The sprockets are manufactured from high carbon steel. Martin does not stack "A" plates on multiples, but instead Martin machines teeth after the chain rows are already in place. These plain bore sprockets can easily be bored to a metric or standard size to fit your application. Keyways, set screws and hardened teeth are quick alterations that can be made.
Martin Single Roller Chain Sprocket, Double Strand Metric Solid Stock Bore Type B, 20 mm Bore Dia, 151.65 mm Outside Dia, 12B-2 Chain, 23 Teeth, 19.05 mm Pitch, 139.902 mm, 110.007 mm Hub Dia, 50.013 mm Length Through Bore, Steel
- Manufactured of high carbon steel
- Precise machining and processes ensure consistent finish and high quality
- Bores are concentric to pitch line, minimizing run out
