Fenner Drives®
B902100

The B-LOC® brand is synonymous with world class quality, engineering excellence and unrivaled customer support. Fenner Drives® B-LOC® keyless bushings provide a high capacity, zero-backlash shaft-to-hub connection by using the simple wedge principle. An axial force is applied by series of annular screws to engage circular steel rings and mating tapers. The resulting wedge action creates a radial force on the tapered rings, one of which contracts to squeeze the shaft while the other expands and presses into the component bore.

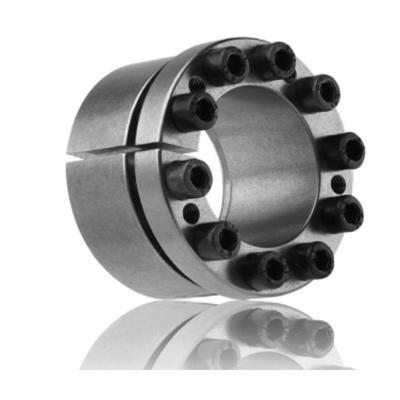

Fenner Drives® B-LOC® Keyless Bushing, Double Taper, Series: B109, 1 in Bore Dia, 1-11/16 in Outside Dia, 3449 in-lb Transmissible Torque, 6899 lb Transmissible Thrust, 18349 psi Hub Contact Pressure, M5 x 18 Screw, 0.984 in Overall Length, Steel

• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Fenner_B0441_Manual.pdf
