Thomson® SBM30

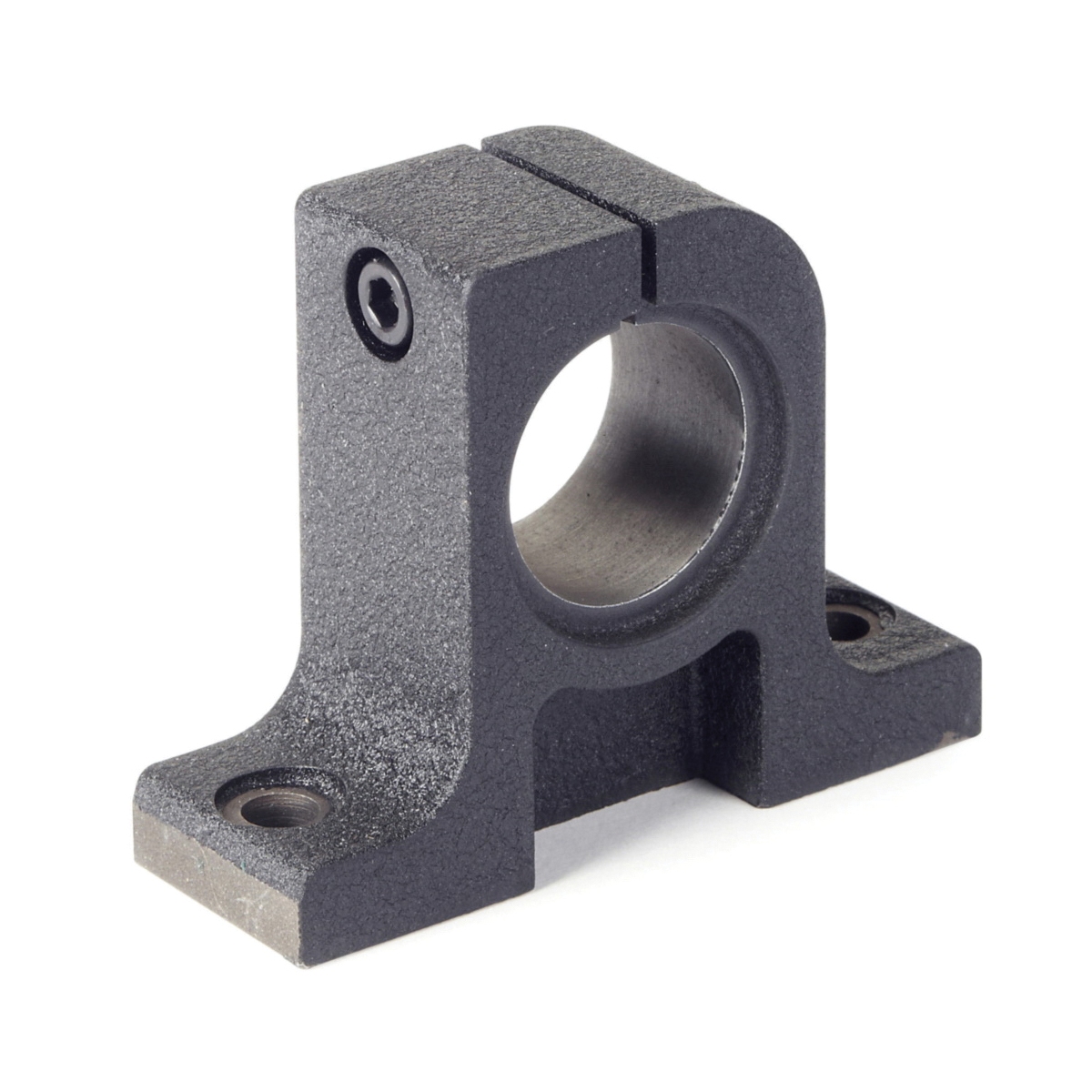

Thomson® 60 Case® LinearRace® SBM30 Standard Type SBM Shaft Support Block, 30 mm Dia Shaft, 84 mm L x 28 mm W x 68 mm H
- Manufacturer: Thomson Industries
- Brand: Thomson®
- BSC Item#: SBM30 THOM
- MPN: SBM30
- UPC: 662486110774
- Min. Order Qty: 1
- Qty. Interval: 1 Availability: Call for Availability
- Sold As: 1/PK
-
Login to see price
Shaft support blocks are used for end or intermittent support where loads are light and deflection between supports is not a problem. Unlike shaft support rails, blocks do not permit longitudinal passage of open-type Ball Bushing® bearings. Type SBM shaft support blocks enable clamping of shafts and eliminate the need for bolts, to maintain shaft position. Shimming is suggested for high-precision applications to eliminate the effect of variations in surface of base or manufacturing tolerances between supports.

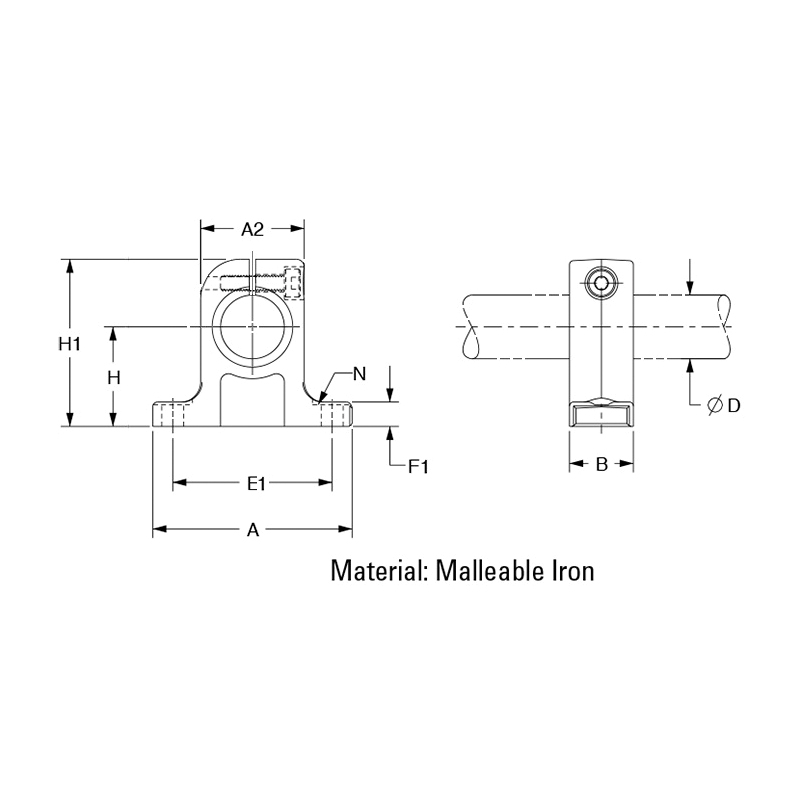

Thomson® 60 Case® LinearRace® Shaft Support Block, Standard Type SBM, 30 mm Shaft Diameter, 28 mm Width, 68 mm Height, 84 mm Length, For Use With: RoundRail™ 1BA/1NA End-Supported Linear Guide, Malleable Iron, Painted
- Easily secured with two mounting bolts
- Protected by corrosion resistant coating
- Lightweight, high-strength aluminum alloy construction
