INA KR30 KR30 INA
Send NoImagePrint
  1. pin-int

INA
KR30

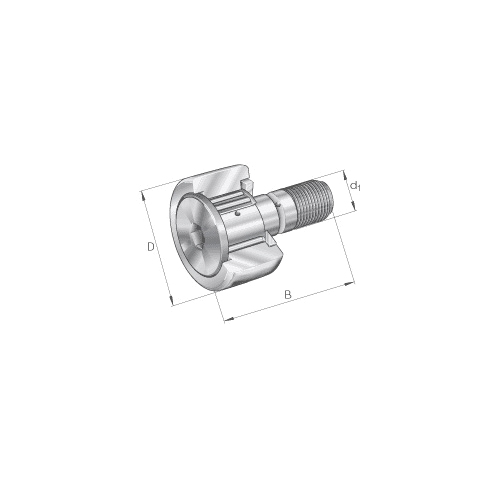

INA KR30 KR Series Stud Track Roller With Axial Guidance, 30 mm Dia x 14 mm W Roller, 12 mm Dia x 25 mm L Stud

  • Manufacturer: Schaeffler Group
  • Brand: INA
  • BSC Item#: KR30 INA
  • MPN: KR30
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

INA Track Roller, Stud, Series: KR Series, 30 mm Roller Dia, 14 mm Roller Width, 12 mm Stud Dia, 25 mm Stud Length, M12 x 1.5, 13 mm Thread Length, 6800 N Dynamic/8600 N Static/1220 N Fatigue, 5500 rpm Maximum, -30 to 140 deg C, Sealed Closure, Hex, Uncoated

  • Gap seal on both sides
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/INA_KR30_Specification_Sheet.pdf
