FAG NU2210-E-XL-TVP2 NU2210E-TVP2 FAG
Send NoImagePrint
  1. pin-int

FAG
NU2210-E-XL-TVP2

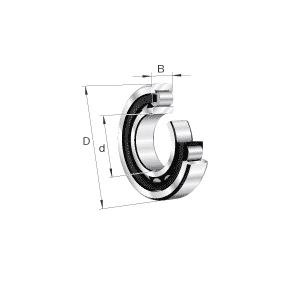

FAG NU2210-E-XL-TVP2 NU22..-E Separable Cylindrical Roller Bearing With Cage, 50 mm Dia Bore, 90 mm OD, 1 Row, 23 mm W, 92000 N Dynamic/88000 N Static/15000 N Fatigue Load

  • Manufacturer: Schaeffler Group
  • Brand: FAG
  • BSC Item#: NU2210E-TVP2 FAG
  • MPN: NU2210-E-XL-TVP2
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

FAG Cylindrical Roller Bearing, Separable, Series: NU22..-E, 50 mm Bore Dia, 90 mm Outside Dia, 1 Row, 23 mm W, Open Closure, 92000 N Dynamic/88000 N Static/15000 N Fatigue, Polyamide 66 Cage, 9700 rpm Maximum, -30 to 120 deg C, Uncoated

  • Non-locating bearing
  • Solid window cage made from glass fiber reinforced polyamide PA66
  • Increased capacity design
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/FAG_NU2210_E_L_TVP2_Specification_Sheet.pdf
Standard/Approvals      :      Meets to DIN 5412-1
