FAG
3314-BD-C3

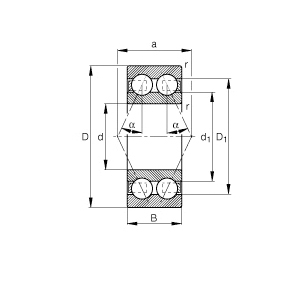

Double row angular contact ball bearings are units with solid inner and outer rings and ball and cage assemblies with polyamide or sheet steel cages. Their construction is similar to a pair of single row angular contact ball bearings in an O arrangement but they are narrower to a certain extent. The bearings are available in open and sealed designs. Due to the manufacturing processes used, open bearings can have turned recesses in the outer ring for seals or shields. Sealed bearings are maintenance-free and therefore allow particularly economical bearing arrangements.

FAG Angular Contact Ball Bearing, Series: 33..-BD, 70 mm Bore Dia, 150 mm Outside Dia, 2 Rows, 63.5 mm W, 30 deg Contact, Open Closure, 172000 N Dynamic/135000 N Static/8700 N Fatigue, Steel Cage, 5100 rpm Maximum, -68 to 392 deg F

• Modified internal construction
• Lower noise level
• Reduced friction
• Improved sealing
• Higher cost-effectiveness
• C3 axial internal clearance

• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/FAG_3314_BD_C3_Specification_Sheet.pdf
