INA D9 AKL.D9 INA
Send NoImagePrint
  1. pin-int

INA
D9

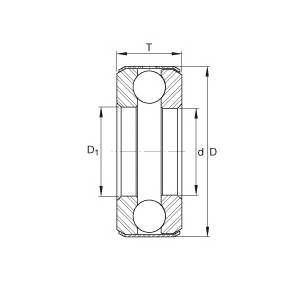

INA D9 Axial Deep Groove Ball Bearing With Retainer, 1 in Dia Bore, 1.969 in OD, 1 Rows, 5/8 in W, 6700 lb Dynamic/13100 lb Static Load

  • Manufacturer: Schaeffler Group
  • Brand: INA
  • BSC Item#: AKL.D9 INA
  • MPN: D9
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

INA Axial Deep Groove Ball Bearing, Series: D Series, 1 in Bore Dia, 1.969 in Outside Dia, 1 Rows, 5/8 in Width, Banded Face, Single Thrust Direction, 6700 lb Dynamic/13100 lb Static, Steel Bearing, 3800 rpm Maximum

  • Banded assembly, non-separable
  • Medium cross section
  • Grooved race
  • Speed limit shown is for oil lubrication
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/INA_DKLFA2590_2RS_Catalog.pdf
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/INA_D9_Specification_Sheet.pdf
