Timken® JM716649-90K08 JM716649-90K08 TIMK
Send NoImagePrint
  1. pin-int

Timken®
JM716649-90K08

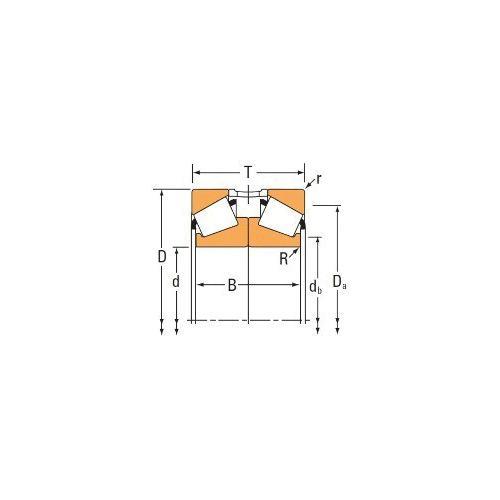

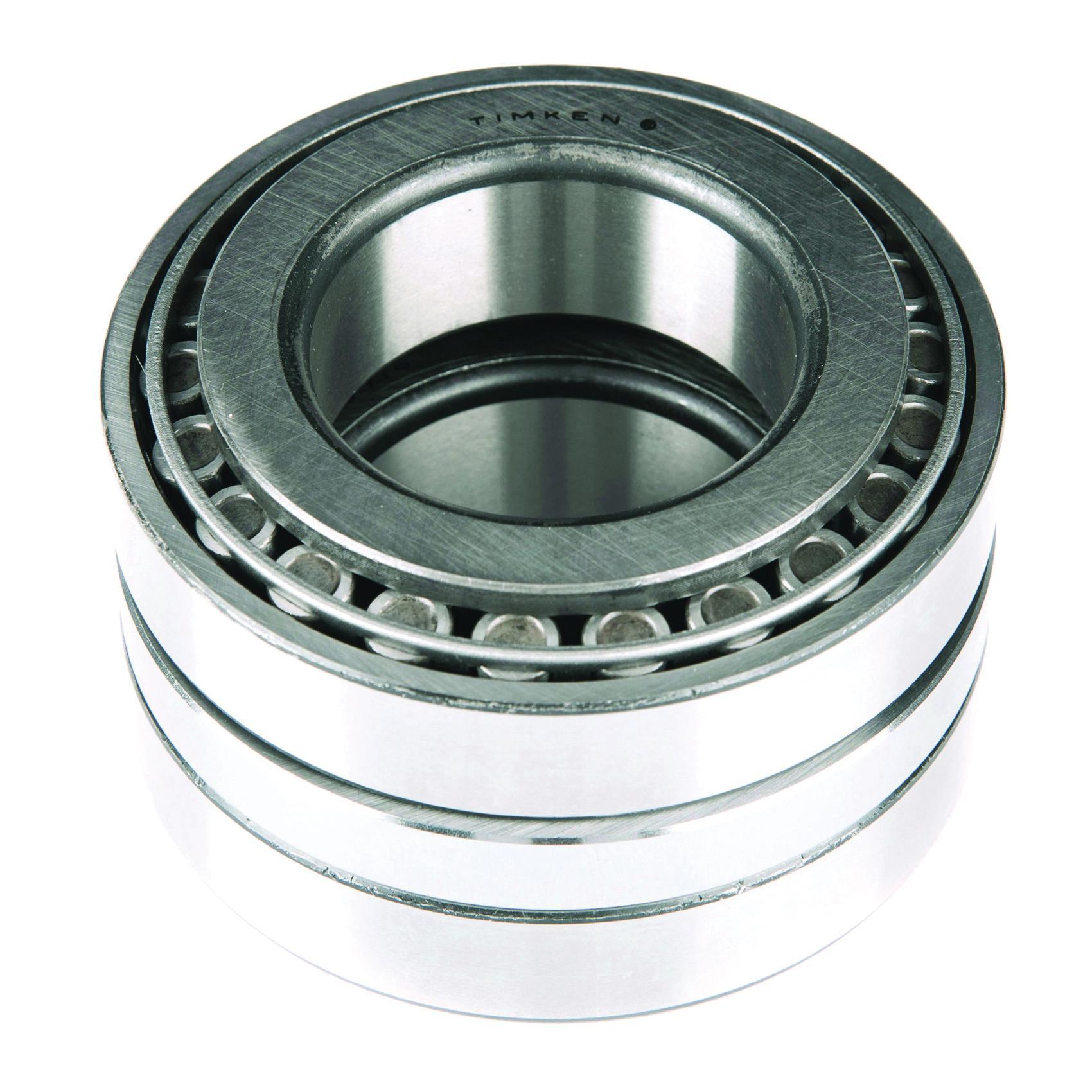

Timken® JM716649-90K08 166 Medium Duty Tapered Roller Bearing Assembly, 85 mm Dia Bore, 130 mm Dia Outside, 2 Rows, 60 mm W, 63100 lb Dynamic/110200 lb Static Load

  • Manufacturer: Timken
  • Brand: Timken®
  • BSC Item#: JM716649-90K08 TIMK
  • MPN: JM716649-90K08
  • UPC: 053893669083
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Timken®, JM716649-90K08, Tapered Roller Bearing Assembly, Medium Duty, Series: 166, 85 mm Bore, 130 mm OD, 2 Rows, 60 mm Width, 63100 lb Dynamic/110200 lb Static Load, Steel Bearing, -54 to 120 deg C

  • 49 component designator
  • 7 angularity designator
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_14125A_90082_Catalog.pdf
Standard/Approvals      :      ABMA Class K|ANSI Standard
Application      :      Gear Reduction Units and Industrial Machines
