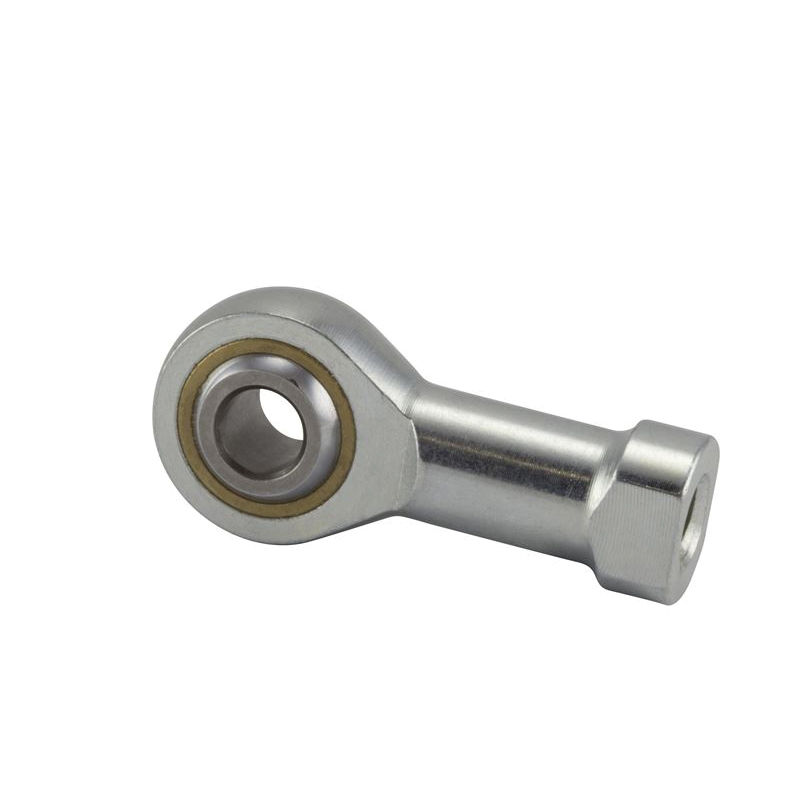

Heim®
SFL3

Heim® Bearings produces the industry's widest range of rod end types and sizes. Heim®'s product range includes rod ends with brass race inserts in standard, precision and high capacity designs, high strength two piece designs, self-lubricating rod ends with engineered thermoplastic races or Teflon® liners and military standard rod ends for the ultimate in rod end performance. Heim® also produces a complete line of ball bearing rod ends that have extremely low friction and accommodate misalignment. Heim® rod ends are also available with a variety of plating's, coatings and materials and with a wide range of optional features such as lubrication fittings, left hand threads and keyway slots.

Heim® Spherical Plain Rod End, Female, Series: SFL, 3 mm Bore Dia, 12 mm Outside Dia, 6 mm Width, M3x0.5 Thread, 27 mm Center Line Length, 4200 N, -30 to 120 deg C, Carbon Steel, 33 mm H

• 15 deg misalignment angle
• Left handed thread handedness
• Metric precision performance
• Non-lubricatable
• 4-piece metal to metal bearing

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Heim_CFHD10_Catalog.pdf
