Heim®
HM3C

Heim® Bearings produces the industry's widest range of rod end types and sizes. Heim®'s product range includes rod ends with brass race inserts in standard, precision and high capacity designs, high strength two piece designs, self-lubricating rod ends with engineered thermoplastic races or Teflon® liners and military standard rod ends for the ultimate in rod end performance. Heim® also produces a complete line of ball bearing rod ends that have extremely low friction and accommodate misalignment. Heim® rod ends are also available with a variety of plating's, coatings and materials and with a wide range of optional features such as lubrication fittings, left hand threads and keyway slots.

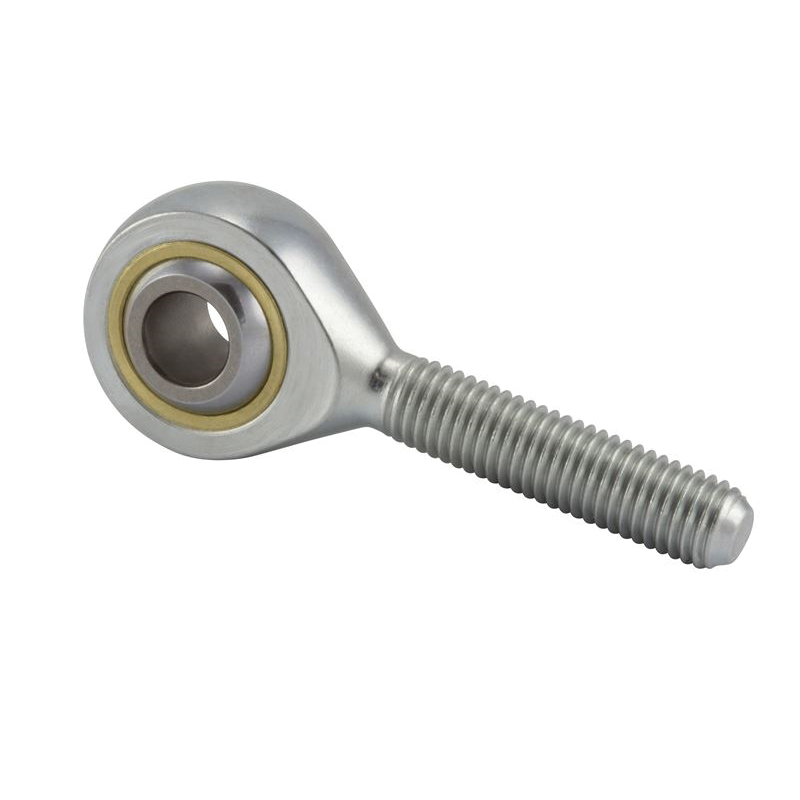

Heim® Spherical Plain Rod End, Male, Series: HM C, 0.19 in Bore Dia, 5/8 in Outside Dia, 0.312 in Width, UNF-3A Thread, 0.19-32 Thread, 1-1/4 in Center Line Length, 900 lb, 250 deg F, Carbon Steel, Steel, 1-9/16 in H

• Utilizes brass inserts to provide lubricity in the bearing area
• Zinc plated bodies and nickel plated balls for corrosion resistance
• Designed to provide low friction, long dynamic life, smooth feel and good conformity
• 6.5 deg misalignment angle
• Brass inserts
• Low friction
• Long dynamic life
• Smooth feel
• Good conformity
• Right handed thread handedness
• Commercial performance
• Non-lubricatable
• 4-piece metal to metal bearing

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Heim_CFHD10_Catalog.pdf
