Thomson®
DS24B

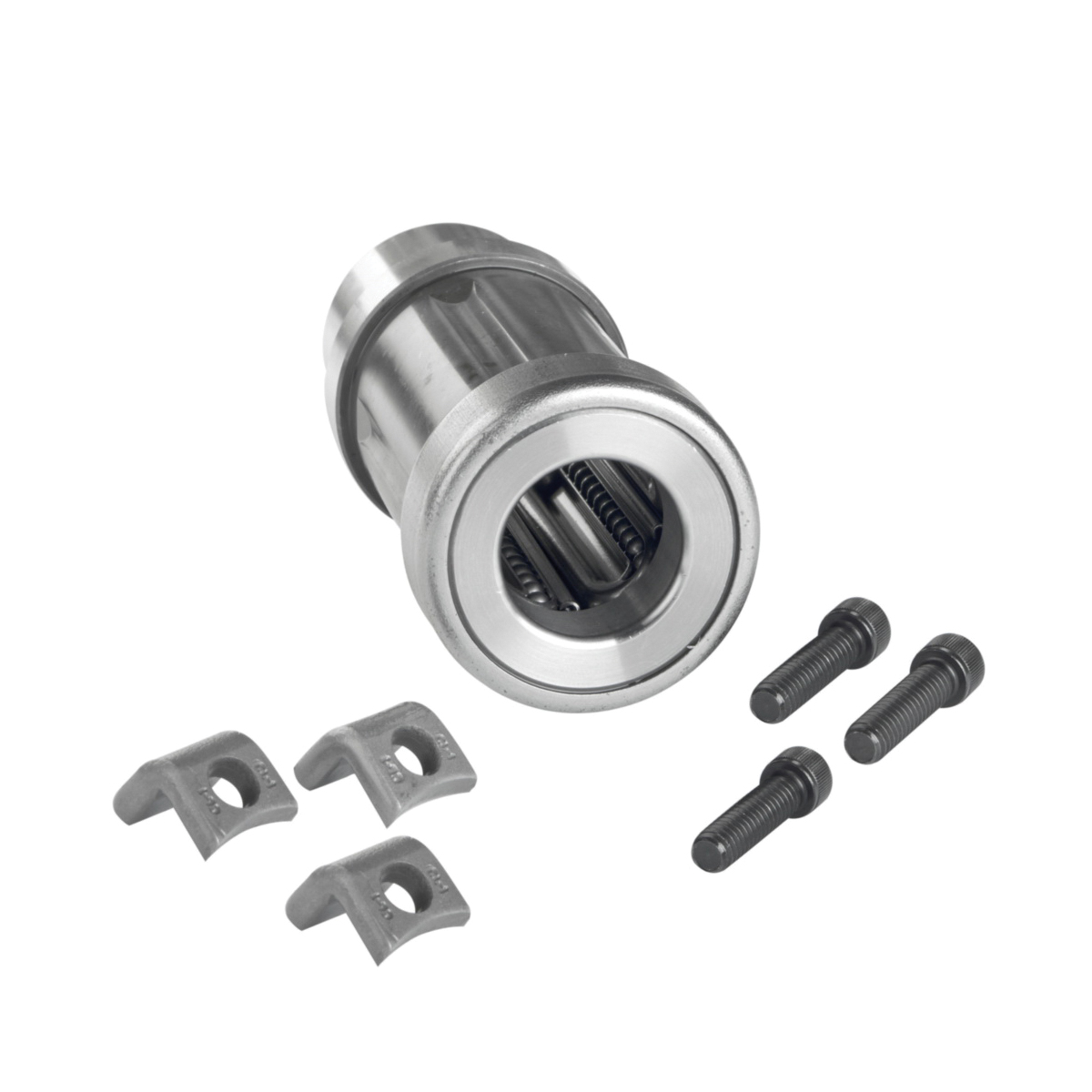

Thomson® Die set ball bushing bearings are designed to fit the mounting holes of the punch holder in standard dies. When replacing high-friction, plain bearings in standard dies, the result is less machine downtime and increased efficiency. With steady state speeds up to 10 ft/s, the die set bearing will provide faster cycle times with improvements in production rates realized immediately. Matched precision ground 60 Case® LinearRace® allows for a close fit-up between the shaft and the LinearRace® shafting and bearing, providing critical die alignment. When normal machine service requires bearing replacement, the die set bearing can be removed by simply unbolting the toe clamps.

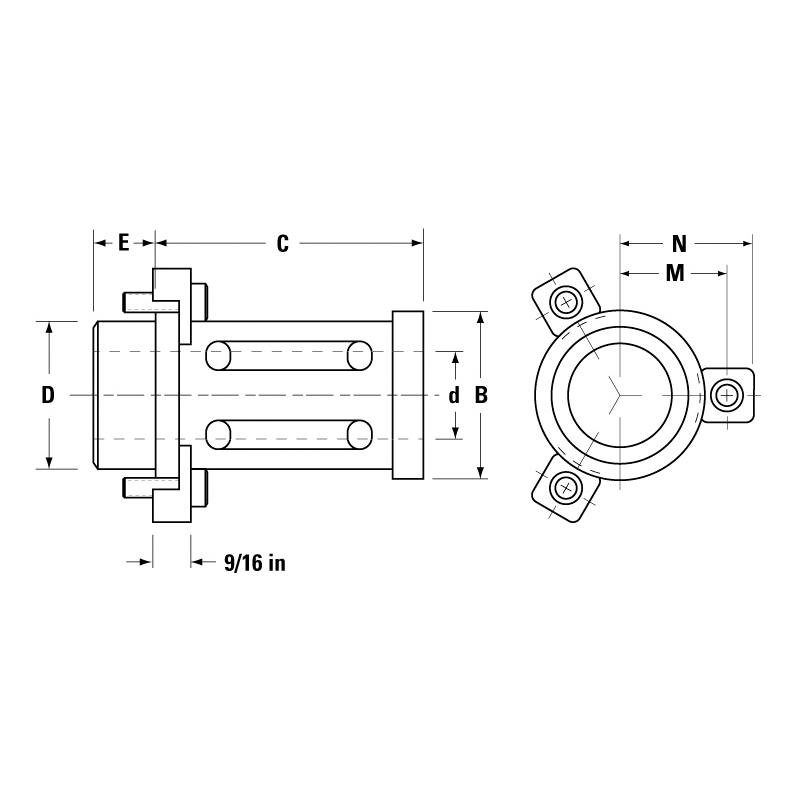

Thomson® Ball Bushing® Die Set Bearing, Series: Precision, 1-1/2 in Shaft Dia, 2.72 in Outside Dia, 2 in Center Line to Base, 5.61 in W, Closed Closure, 770 lb Dynamic, Steel Bearing, 500 deg F

• Designed specifically for die movement applications
• The all steel design makes this ball bushing bearing suitable for high temperature applications
• Not self-aligning
• Non-adjustable
• No wipers
• 6 ball circuits

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Thomson_ADJS1000_Catalog.pdf
