Heim®

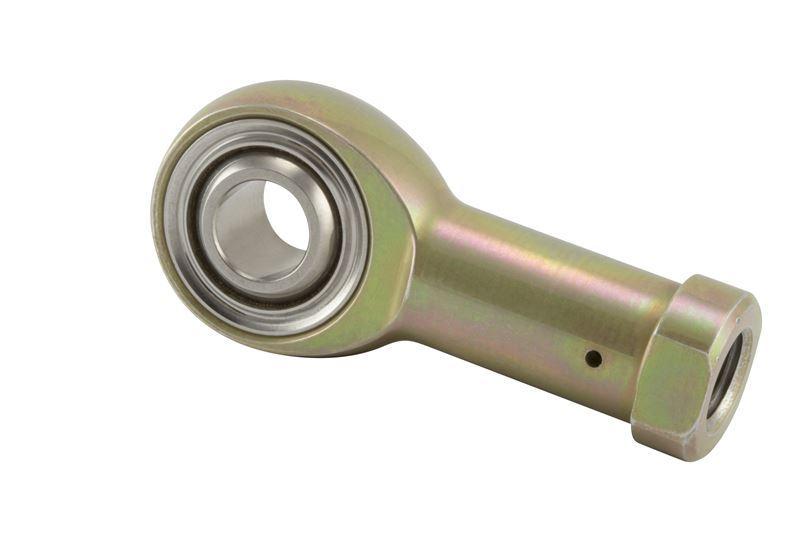

FEL6

Heim® Bearings produces the industry's widest range of rod end types and sizes. Heim®'s product range includes rod ends with brass race inserts in standard, precision and high capacity designs, high strength two piece designs, self-lubricating rod ends with engineered thermoplastic races or Teflon® liners and military standard rod ends for the ultimate in rod end performance. Heim® also produces a complete line of ball bearing rod ends that have extremely low friction and accommodate misalignment. Heim® rod ends are also available with a variety of plating's, coatings and materials and with a wide range of optional features such as lubrication fittings, left hand threads and keyway slots.

Heim® Spherical Plain Rod End, Female, Series: FEL, 3/8 in Bore Dia, 1.025 in Outside Dia, 1/2 in Width, UNJF-3B Thread, 3/8-24 Thread, 1.812 in Center Line Length, 8550 lb, 250 deg F, 4340 Alloy Steel, Steel, 2.325 in H

• Self-lubricating for applications where relubrication is not practical or desirable
• Utilizes cartridge type design for the optimum selection of materials for ball, race and rod end body
• 1660 lb axial static
• 6 deg misalignment angle
• Left handed thread handedness
• Military performance

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Heim_CFHD10_Catalog.pdf
