Martin 1610 38MM

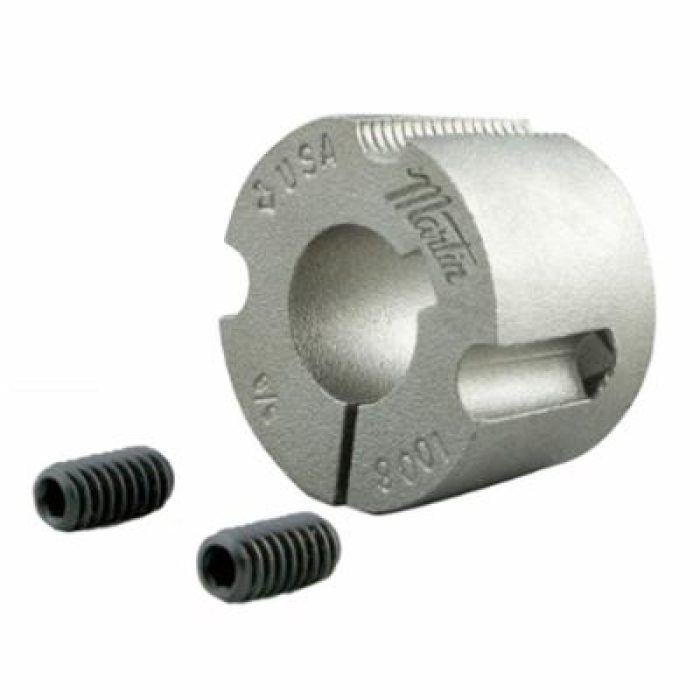

Martin 1610 38MM Taper Lock Bushing, 38 mm Dia Bore, 2-1/4 mm Dia Barrel, 1 in OAL, Steel
- Manufacturer: Martin Sprocket & Gear
- Brand: Martin
- BSC Item#: 1610-38MM
- MPN: 1610 38MM
- UPC: 697950210537
- Min. Order Qty: 1
- Qty. Interval: 1 Availability: Call for Availability
- Sold As: 1/PK
-
Login to see price
Martin Taper Lock Bushing, 38 mm Bore Dia, 2-1/4 mm Barrel Dia, 3-1/4 in Hub Dia, 8 deg Taper, 2-1/8 in Bolt Circle, 2 Bolt Holes, 3/8-16 x 5/8 in Screw, 4300 in-lb, 1 in Overall Length, 10 x 3.3 mm Keyway, Steel
| Bore Diameter | : | 38 mm |
| Barrel Diameter | : | 2-1/4 in |
| Hub Diameter | : | 3-1/4 in |
| Taper | : | 8 deg |
| Bolt Circle Diameter | : | 2-1/8 in |
| Number of Bolt Holes | : | 2 |
| Screw Size | : | 3/8-16 x 5/8 in |
| Torque Rating | : | 4300 in-lb |
| Overall Length | : | 1 in |
| Keyway Size | : | 10 x 3.3 mm |
| Material | : | Steel |
- Size 1610 bushing
- TB Bushings are designed for flush mounting and do not have a flange
Catalog
| Standard/Approvals | : | ANSI B15.1 |
