Heim®
HF8G

Heim® Bearings produces the industry's widest range of rod end types and sizes. Heim®'s product range includes rod ends with brass race inserts in standard, precision and high capacity designs, high strength two piece designs, self-lubricating rod ends with engineered thermoplastic races or Teflon® liners and military standard rod ends for the ultimate in rod end performance. Heim® also produces a complete line of ball bearing rod ends that have extremely low friction and accommodate misalignment. Heim® rod ends are also available with a variety of plating's, coatings and materials and with a wide range of optional features such as lubrication fittings, left hand threads and keyway slots.

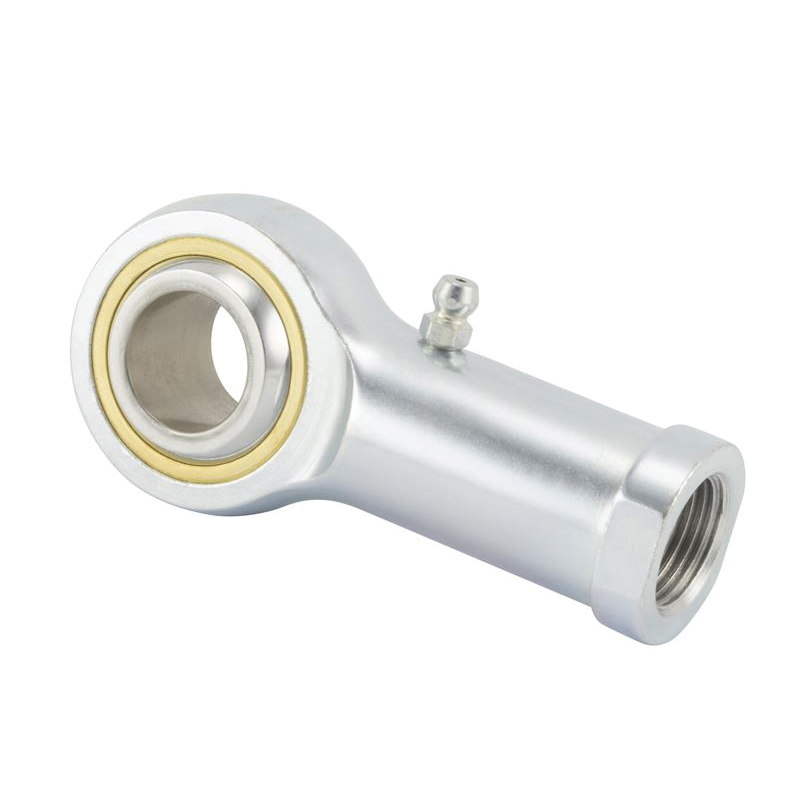

Heim® Spherical Plain Rod End, Female, Series: HF Series, 1/2 in Bore Dia, 1.312 in Outside Dia, 5/8 in Width, UNF-3B Thread, 1/2-20 Thread, 2-1/8 in Center Line Length, 7400 lb, 250 deg F, Carbon Steel, Steel, 2.781 in H

• Utilizes brass inserts to provide lubricity in the bearing area
• Produced to tight tolerances for applications where positioning accuracy is critical
• Grease fitting for easy relubrication
• 6 deg misalignment angle
• Brass inserts
• Low friction
• Long dynamic life
• Smooth feel
• Good conformity
• Right handed thread handedness
• Precision performance
• Lubricatable
• 4-piece metal to metal bearing

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Heim_CFHD10_Catalog.pdf
