Heim®
HMX5

Heim® Bearings produces the industry's widest range of rod end types and sizes. Heim®'s product range includes rod ends with brass race inserts in standard, precision and high capacity designs, high strength two piece designs, self-lubricating rod ends with engineered thermoplastic races or Teflon® liners and military standard rod ends for the ultimate in rod end performance. Heim® also produces a complete line of ball bearing rod ends that have extremely low friction and accommodate misalignment. Heim® rod ends are also available with a variety of plating's, coatings and materials and with a wide range of optional features such as lubrication fittings, left hand threads and keyway slots.

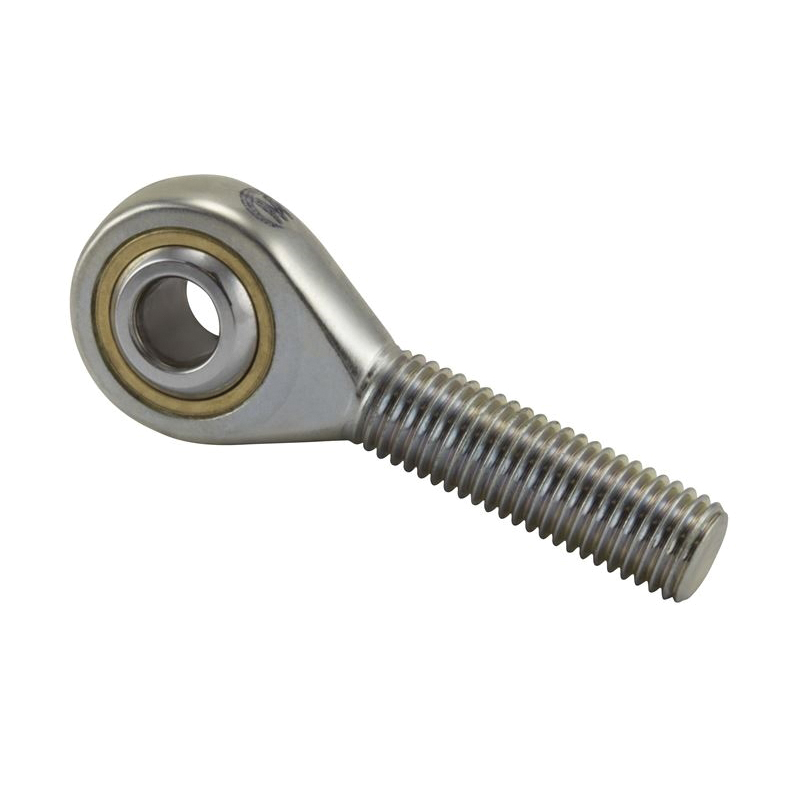

Heim® Spherical Plain Rod End, Male, Series: HMX G, 5/16 in Bore Dia, 7/8 in Outside Dia, 0.437 in Width, UNF-3A Thread, 3/8-24 Thread, 1-7/8 in Center Line Length, 8410 lb, 250 deg F, 4130/4340 Alloy Steel, 2-5/16 in H

• 7 deg misalignment angle
• Aluminum bronze inserts
• High strength body
• High capacity version
• Right handed thread handedness
• Precision extra capacity performance
• Non-lubricatable
• 4-piece metal to metal bearing

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Heim_CFHD10_Catalog.pdf
