Heim®
SFG20

Heim® Bearings produces the industry's widest range of rod end types and sizes. Heim®'s product range includes rod ends with brass race inserts in standard, precision and high capacity designs, high strength two piece designs, self-lubricating rod ends with engineered thermoplastic races or Teflon® liners and military standard rod ends for the ultimate in rod end performance. Heim® also produces a complete line of ball bearing rod ends that have extremely low friction and accommodate misalignment. Heim® rod ends are also available with a variety of plating's, coatings and materials and with a wide range of optional features such as lubrication fittings, left hand threads and keyway slots.

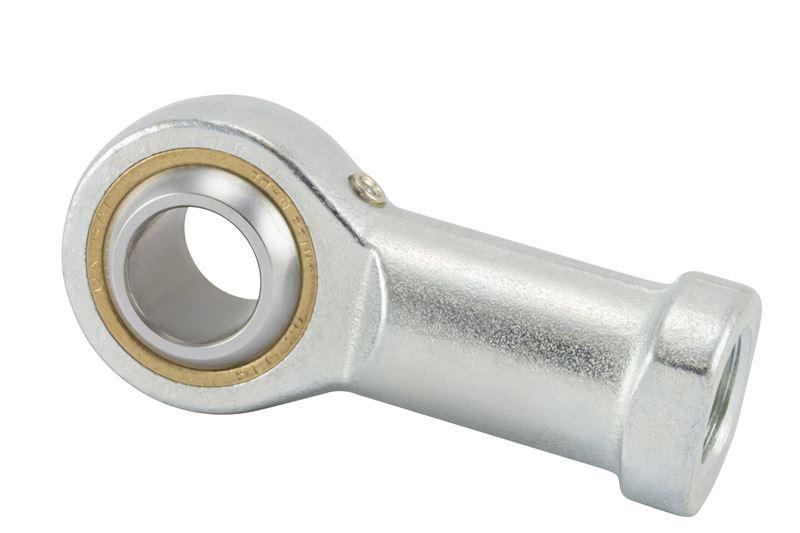

Heim® Spherical Plain Rod End, Female, Series: SFG, 20 mm Bore Dia, 46 mm Outside Dia, 25 mm Width, M20x1.5 Thread, 100 mm Center Line Length, 45000 N, -30 to 120 deg C, Carbon Steel, Steel, 123 mm H

• Utilizes brass inserts to provide lubricity in the bearing area
• Produced to tight tolerances for applications where positioning accuracy is critical
• Grease fitting for easy relubrication
• 15 deg misalignment angle
• Right handed thread handedness
• Metric precision performance
• Lubricatable
• 4-piece metal to metal bearing

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Heim_CFHD10_Catalog.pdf
