Heim®
FE16

Heim® Bearings produces the industry's widest range of rod end types and sizes. Heim®'s product range includes rod ends with brass race inserts in standard, precision and high capacity designs, high strength two piece designs, self-lubricating rod ends with engineered thermoplastic races or Teflon® liners and military standard rod ends for the ultimate in rod end performance. Heim® also produces a complete line of ball bearing rod ends that have extremely low friction and accommodate misalignment. Heim® rod ends are also available with a variety of plating's, coatings and materials and with a wide range of optional features such as lubrication fittings, left hand threads and keyway slots.

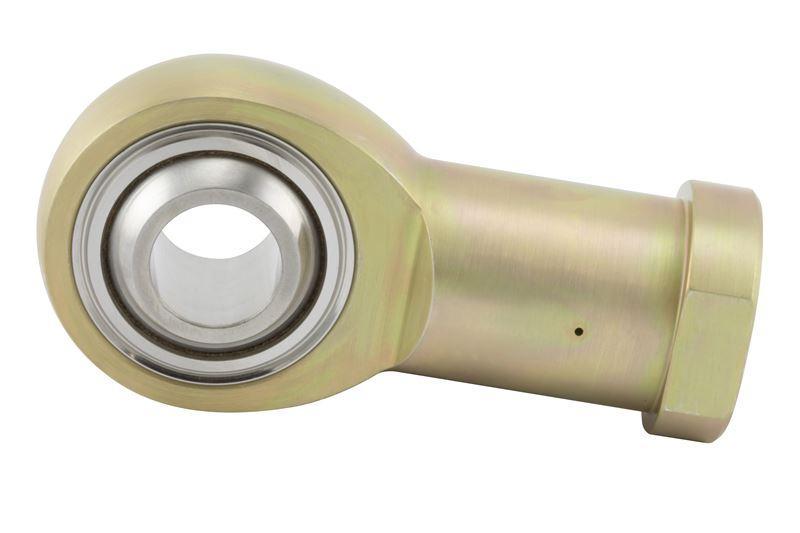

Heim® Spherical Plain Rod End, Female, Series: FE Series, 1 in Bore Dia, 2.775 in Outside Dia, 1-3/8 in Width, UNJF-3B Thread, 1-1/4-12 Thread, 4-1/8 in Center Line Length, 80300 lb, 250 deg F, 4340 Alloy Steel, Steel, 5.513 in H

• Self-lubricating for applications where relubrication is not practical or desirable
• Utilizes cartridge type design for the optimum selection of materials for ball, race and rod end body
• 4340 lb axial static
• 8.5 deg misalignment angle
• Right handed thread handedness
• Military performance

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Heim_CFHD10_Catalog.pdf
