Tsubaki® 41B13 H41B13 UST
Send NoImagePrint
  1. pin-int

Tsubaki®
41B13

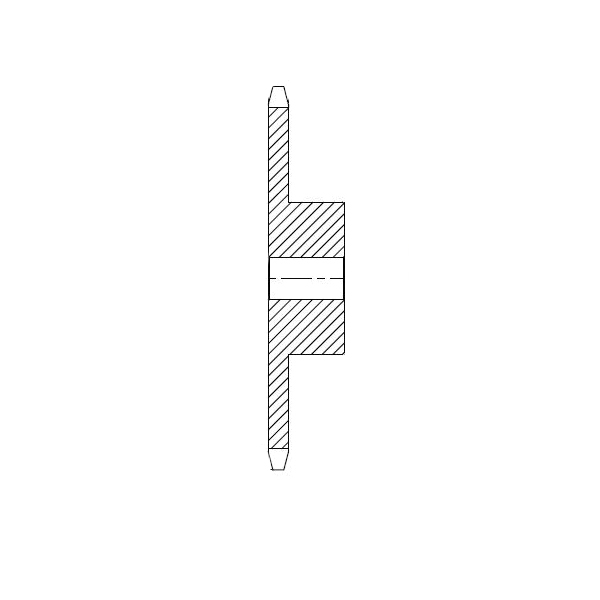

Tsubaki® 41B13 Plain Bore Type B Single Pitch Roller Chain Sprocket, 1/2 in Dia Bore, 2.33 in OD, #41 Chain, 13 Teeth, 1/2 in Pitch, Carbon Steel

  • Manufacturer: U.S. Tsubaki Power Transmission
  • Brand: Tsubaki®
  • BSC Item#: H41B13 UST
  • MPN: 41B13
  • UPC: 097039314345
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Associated with "B" style sprockets where there is no special machining performed to accommodate keyways or set screws, only a hole to accommodate shaft diameter.

Tsubaki® Single Pitch Roller Chain Sprocket, Plain Bore Type B, 1/2 in Bore Dia, 2.33 in Outside Dia, #41 Chain, 13 Teeth, 1/2 in Pitch, 2.089 in, 1.563 in Hub Dia, 1-24 Screw, 1/8 x 1/16 in Keyway, 7/8 in Length Through Bore, Carbon Steel

  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Tsubaki_JA_Catalog.pdf
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Tsubaki_41B13_Specification_Sheet.pdf
Standard/Approvals      :      PTDA and CEMA Standard
Application      :      Oil and Gas, Lumber, Mining, Primary Metals, Material Handling, Conveyor, Civil Engineering Projects, Machine Tool, Marine, Packaging Machinery, Pulp and Paper, Food Processing and Forestry
