Brewer Universal Drive Tensioner 31E20 31E20 BREW
Send NoImagePrint
  1. pin-int

Brewer Universal Drive Tensioner
31E20

Brewer Universal Drive Tensioner 31E20 A-Style Single Strand Idler Roller Chain Sprocket With Bronze Bushing, 1/2 in Dia Bore, 2.6 in OD, 35 Chain, 20 Teeth, 3/8 in Pitch, Steel

  • Manufacturer: Brewer Machine and Gear
  • Brand: Brewer Universal Drive Tensioner
  • BSC Item#: 31E20 BREW
  • MPN: 31E20
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

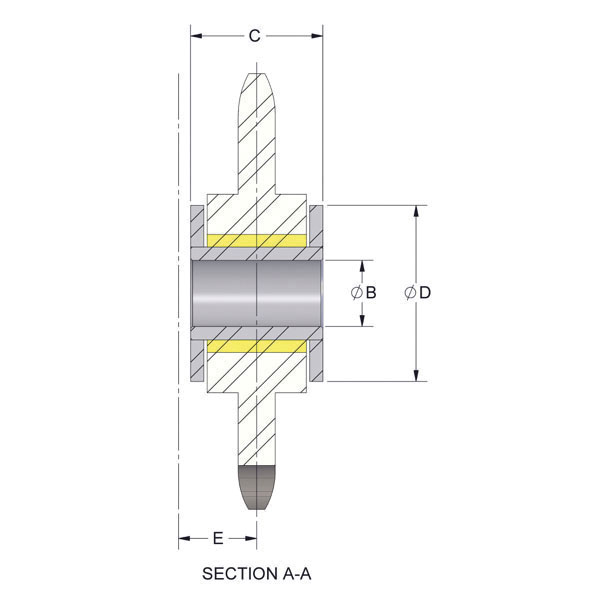

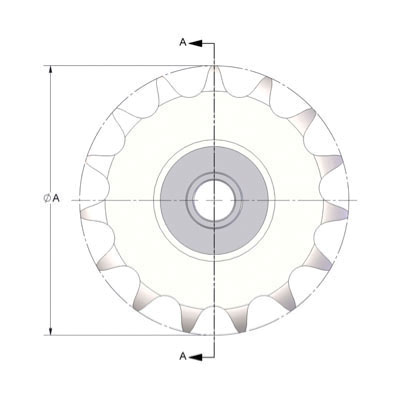

Brewer Universal Drive Tensioner Idler Roller Chain Sprocket, A-Style Single Strand, 1/2 in Bore Dia, 2.6 in Outside Dia, 35 Chain, 20 Teeth, 3/8 in Pitch, 1 in Length Through Bore, Steel

  • Machined steel sprockets with hardened teeth
  • Hardened and ground steel journals with oil-impregnated sintered bronze bearings
  • Compatible with a wide array of mounts and idler shafts
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Brewer_SD_B_Catalog.pdf
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Brewer_31E20_Specification_Sheet.pdf
Application      :      For use with model IS500 and IS165 machined shoulder studs
