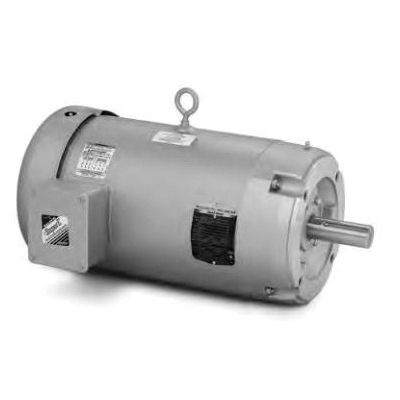

Baldor-Reliance
VEM2334T

Single phase and three phase general purpose motors are designed to meet or exceed the energy efficiency requirements of the United States, Canada and Mexico for general purpose industrial motors, while delivering high starting torque, overload capability and superior reliability. The extensive line of General Purpose motors are available in a wide variety of enclosure construction from industrial steel band open designs where water and dust exposure is moderate, to totally enclosed cast iron designs where exposure to water, dust and corrosives exists. The Super-E® motors provide NEMA premium efficiency and are Inverter ready with wide variable torque speed ranges as standard. For motors with features outside the capabilities below, please contact your Baldor-Reliance sales representative.

Baldor-Reliance AC Motor, Continuous Duty Type 0952M, General Purpose AC Motors, Fan & Blower Motors, Compressor Motors Application, 20 hp, 208/230/460 VAC, 52/48/24 A, 60 Hz Frequency, 3 ph ph, 1765 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 256TC Frame, 1-5/8 in Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 59 ft-lb Torque, C-Face Footless Mounting, 40 deg C, Insulation Class: Class F, Iron, 23.8 in L x 16.67 in W Dimensions

• Footless design reduces weight and improves safety
• Locked drive end bearing to allow mounting in any configuration
• Suitable for inverter use
• Designed for longevity

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_EJM3559_Catalog.pdf
• Full Engineerin... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_VEM2334T_Full_Engineering_Drawing.pdf
• Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_VEM2334T_Line_Drawing.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_VEM2334T_Specification_Sheet.pdf
