Baldor-Reliance 522 522 BLDR
Send NoImagePrint
  1. pin-int

Baldor-Reliance
522

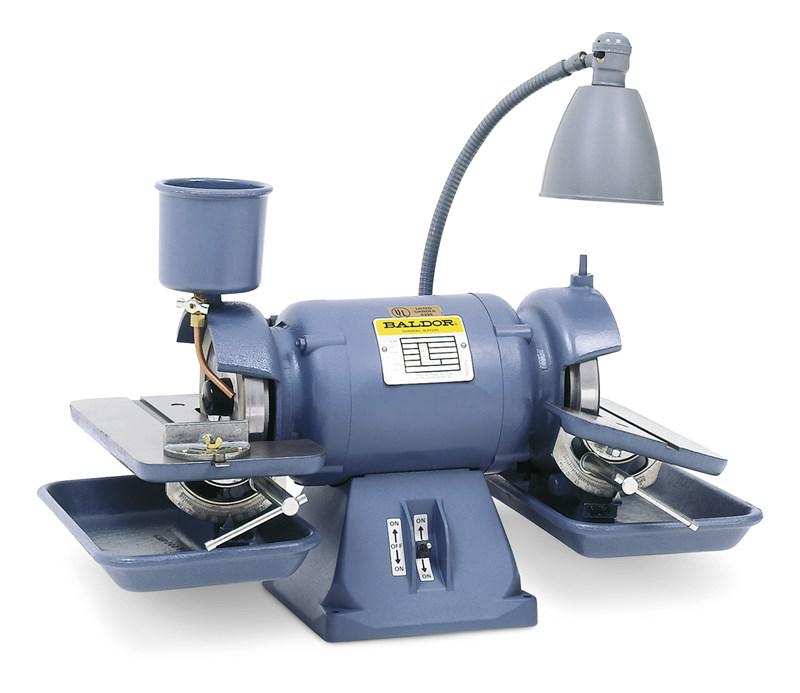

Baldor-Reliance 522 1-Phase Continuous Duty Diamond Wheel Grinder Kit, 6 in Dia x 1 in W Wheel, 3/4 in Arbor/Shank, 3600 rpm, 1/2 hp

  • Manufacturer: ABB Baldor-Reliance
  • Brand: Baldor-Reliance
  • BSC Item#: 522 BLDR
  • MPN: 522
  • UPC: 781568127315
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Diamond wheel tool grinders feature all cast iron construction. Precision built, they have locked double row bearings and a maximum runout of 0.002 for precise tool and die work. Accommodates cup wheels with 1-1/4 in center hole. Large tool tables with protractor type tool support. Light and water pot with spout and faucet that can be moved to either side are standard equipment.

Baldor-Reliance Diamond Wheel Grinder Kit, 1-Phase Continuous Duty, Kit, 6 in Wheel Dia, 3/4 in, 3600 rpm, 1 in Wheel Width, 1/2 hp, 115 VAC, 5 A, Toggle Switch Control, 24.94 in L

  • pdf Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_522_Manual.pdf
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_CBK006_2_Catalog.pdf
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_2f57174c855d5574f1f192f64c46f0ad98b5993c2ceaddf6defd33c499909bdb.pdf
  • pdf Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6c262bab08a781af513bf54a5e534e74b23d792ef27b34485f442938b8491e27.pdf
  • pdf Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f72c3f2fd40e44bf27049362066fbbce79f483ddafb5d33790909f1947046c15.pdf
Standard/Approvals      :      ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Recognized|UL Listed
Application      :      Grinding Applications
