Baldor-Reliance JML1512T JML1512T BLDR
Send NoImagePrint
  1. pin-int

Baldor-Reliance
JML1512T

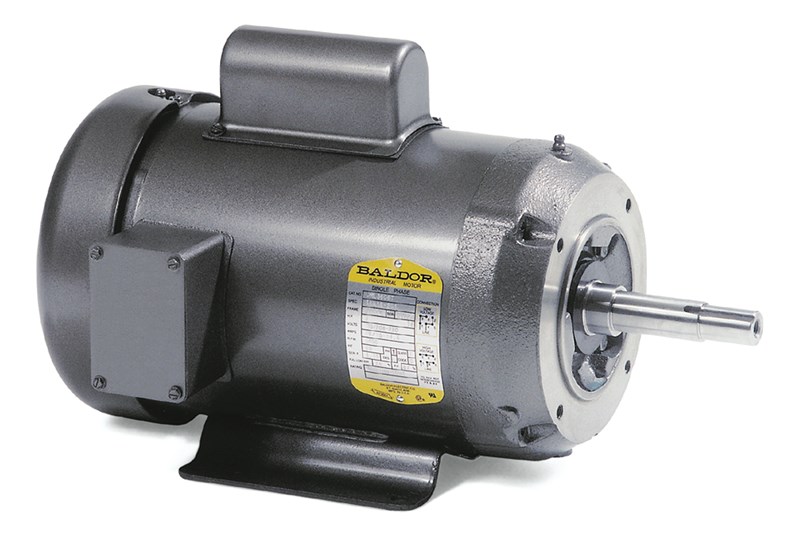

Baldor-Reliance JML1512T Type JM Mechanical Seal AC Motor With Drip Cover, 10 hp, 230 VAC, 60 Hz, 1 ph, 215JM Frame, 1725 rpm, F1 Foot Mount, ODTF Enclosure

  • Manufacturer: ABB Baldor-Reliance
  • Brand: Baldor-Reliance
  • BSC Item#: JML1512T BLDR
  • MPN: JML1512T
  • UPC: 781568204740
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Baldor-RelianceAC Motor, Type JM Mechanical Seal, Close Coupled Pump Motor, General Purpose AC Motor Application Type, Continuous Duty Motor Special Features, 10 hp, 230 VAC, 41 A, 60 Hz, 1 ph Phase, 1725 rpm, 1 Speed, ODTF, 215JM Frame, 7/8 in Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 30.3 ft-lb, F1 Foot Mount, 40 deg C, Insulation Class: Class F, Steel, 20.95 in L

  • Heavy gauge steel frame
  • Corrosion-resistant finish
  • Oversized ball bearings with locked construction to minimize axial shaft movement
  • Without auxiliary box
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_150f670041337e1769d2ce764358429ab4bf8da7380cc420f70e53582ef271f1.pdf
  • pdf Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f72c3f2fd40e44bf27049362066fbbce79f483ddafb5d33790909f1947046c15.pdf
Standard/Approvals      :      ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CSA Certified|UL Recognized
Application      :      Pumping Systems
