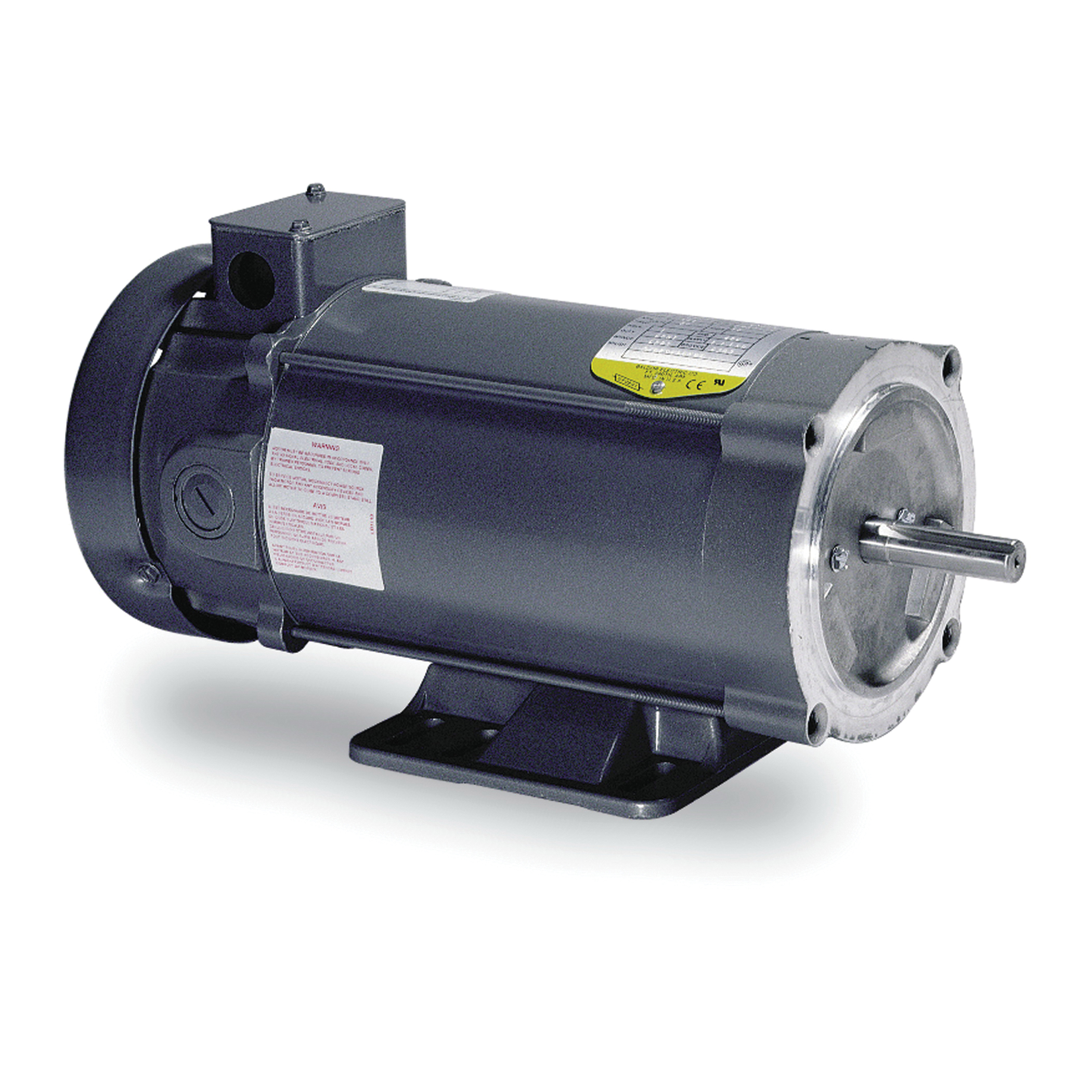

Baldor-Reliance
CDP3590

Baldor-Reliance DC motors offer performance and reliability in tough applications. Round frame DC motors utilize permanent magnet technology optimizing the commutator, brushes and inertia to assure the best performance possible. Wound field motors are designed with superior commutation through the speed range to ensure trouble-free operation and the insulation system is designed with extra margin of safety to eliminate performance-limiting hot spots.

Baldor-Reliance DC Motor, Continuous Duty Type 3536P, General Purpose DC Motors Application, 2 hp Power, 180 VDC, 10 A, 2400 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 145TC Frame, 7/8 in Shaft, Reversible Rotation, 1 Service Factor, Sealed Bearing, 4.375 ft-lb Torque, Foot Rigid Mounting, 40 deg C, Insulation Class: Class F, Steel, 16.37 in L Dimensions

• NEMA C-face with removable base
• Tachometer adaptable
• 20:1 constant torque speed range

• Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_CDP3590_Line_Drawing.pdf
• Full Engineerin... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_CDP3590_Technical_Drawing.pdf
• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_EJM3559_Catalog.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_942fba44b97e8b043d4330fd3c3d018910865e622f2dd0ab7bb13097503ff9f0.pdf
• Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f72c3f2fd40e44bf27049362066fbbce79f483ddafb5d33790909f1947046c15.pdf
