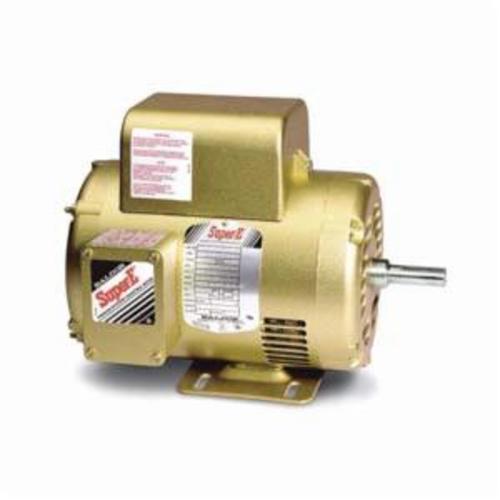

Baldor-Reliance
EL1408T

Single phase and three phase general purpose motors are designed to meet or exceed the energy efficiency requirements of the United States, Canada and Mexico for general purpose industrial motors, while delivering high starting torque, overload capability and superior reliability. The extensive line of general purpose motors are available in ok wide variety of enclosure construction from industrial steel band open designs where water and dust exposure is moderate, to totally enclosed cast iron designs where exposure to water, dust and corrosives exists. The Super-E® motors provide NEMA premium efficiency and are inverter ready with wide variable torque speed ranges as standard. For motors with features outside the capabilities below, please contact your Baldor-Reliance sales representative.

Baldor-Reliance Super-E® AC Motor, Continuous-Duty, General Purpose AC Motors, Fan & Blower Motors Application, 3634LC Motors, Direct On Line Starting Method Special Features, 3 hp, 208/230 VAC, 11.2/12.5 A, 60 Hz Frequency, 1 ph, 1750 rpm Speed, 1 Speed, OPSB Enclosure, 184 Frame, 1-1/8 in Dia Shaft, Reversible Rotation, 1.149 Service Factor, Ball Bearing, 20.4 ft-lb Torque, F-1 Mounting, 40 to 76 deg C, Insulation Class: Class F, Steel, 16-1/2 in L Dimensions

• Low noise vibration dampening base
• Dynamically balanced rotor to increase bearing life
• Superior switch design provides optimized torque profiles
• Robust heavy gauge steel design
• Optimized airflow design providing higher horse power in ok smaller package

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_Baldor_Reliance_L3509_Brochure.pdf
• Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f72c3f2fd40e44bf27049362066fbbce79f483ddafb5d33790909f1947046c15.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_fdca3ba22179c120e5d18dde3b960c9a2c707b8b613f0014d1496291433e25b3.pdf
