Baldor-Reliance
M3535

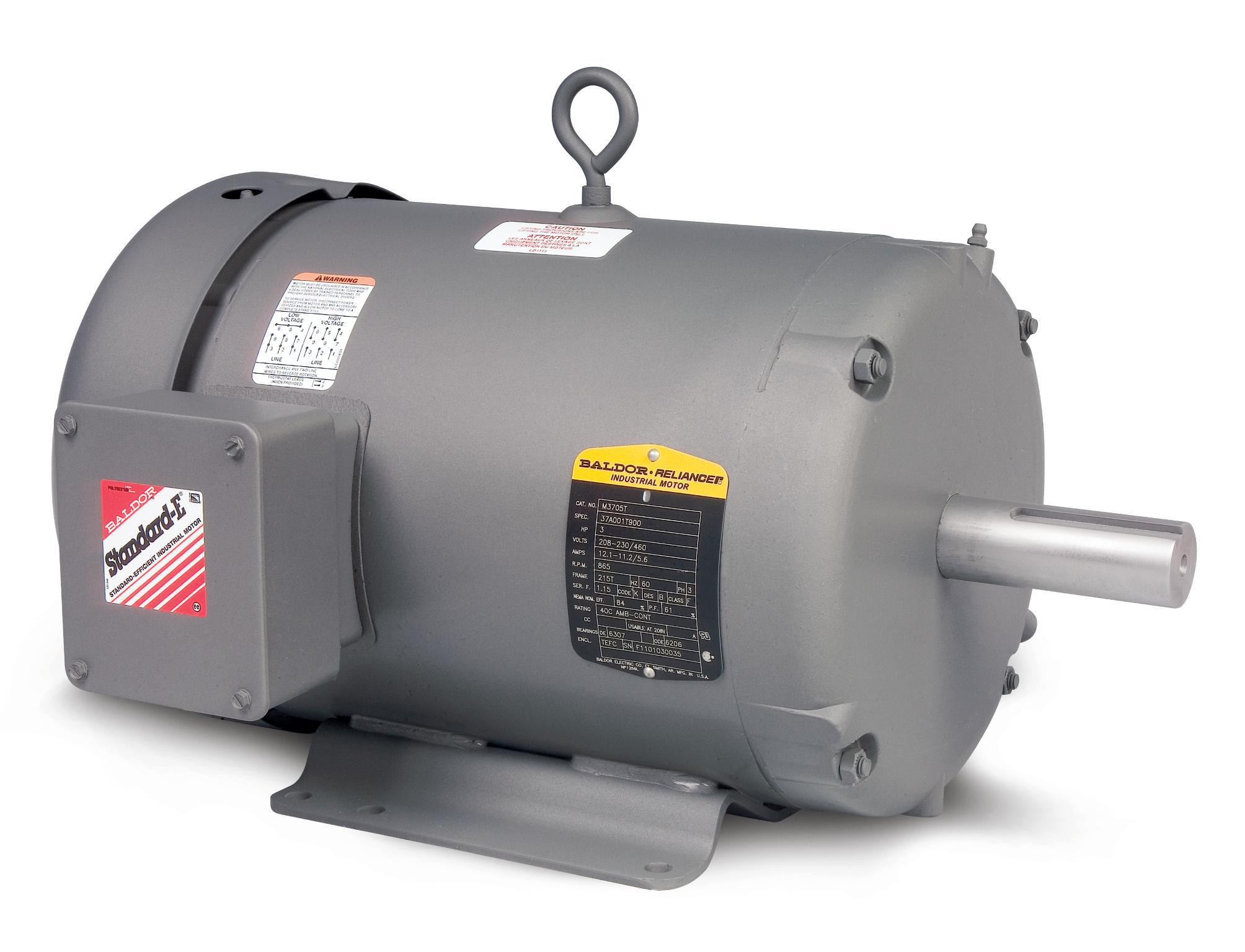

Baldor-Reliance M3535 Type 3414M Continuous Duty Definite Purpose AC Motor, 0.33 hp, 208/230/460 VAC, 60 Hz, 3 Phase, 56 Frame, 1140 rpm Speed, Foot Rigid Mounting

  • Manufacturer: ABB Baldor-Reliance
  • Brand: Baldor-Reliance
  • BSC Item#: M3535 BLDR
  • MPN: M3535
  • UPC: 781568101858
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Single phase and three phase general purpose motors are designed to meet or exceed the energy efficiency requirements of the United States, Canada and Mexico for general purpose industrial motors, while delivering high starting torque, overload capability and superior reliability. The extensive line of General Purpose motors are available in a wide variety of enclosure construction from industrial steel band open designs where water and dust exposure is moderate, to totally enclosed cast iron designs where exposure to water, dust and corrosives exists. The Super-E® motors provide NEMA premium efficiency and are Inverter ready with wide variable torque speed ranges as standard. For motors with features outside the capabilities below, please contact your Baldor-Reliance sales representative.

Baldor-Reliance, M3535, Definite Purpose AC Motor, Type 3414M Continuous Duty, General Purpose AC Motors, Fan & Blower Motors, Compressor Motors Application, 0.33 hp, 208/230/460 VAC, 2.1/1.8/0.9 A, 60 Hz Frequency, 3 ph, 1140 rpm Speed, 1 Speed, 56 Frame, 5/8 in Shaft, Reversible Rotation, 1.35 Service Factor, 1.5 ft-lb Torque, Foot Rigid Mounting, 40 to 76 deg C, Steel, 11.35 in L x 9.27 in W Dimensions

  • Suitable for inverter use
  • Copper windings
  • Heavy duty steel or cast iron frames
  • Super-E® motors have NEMA Premium® efficiency
  • Without drip cover
  • Without auxiliary box
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_EJM3559_Catalog.pdf
  • pdf Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_M3535_Line_Drawing.pdf
  • pdf Full Engineerin... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_M3535_Technical_Drawing.pdf
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_81f93e11ed56efc6ce98e2bf96008117f7510fe0eb1cd9ecec8c6660b4c54495.pdf
  • pdf Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f72c3f2fd40e44bf27049362066fbbce79f483ddafb5d33790909f1947046c15.pdf
Standard/Approvals      :      ARRA Compliant|Buy American Act Compliant|CSA Certified|UR Listed|RoHS Compliant|UL Recognized
Application      :      Pumps, Compressors, Fans, Conveyors, Machine Tools and Other General Purpose Three Phase Applications
