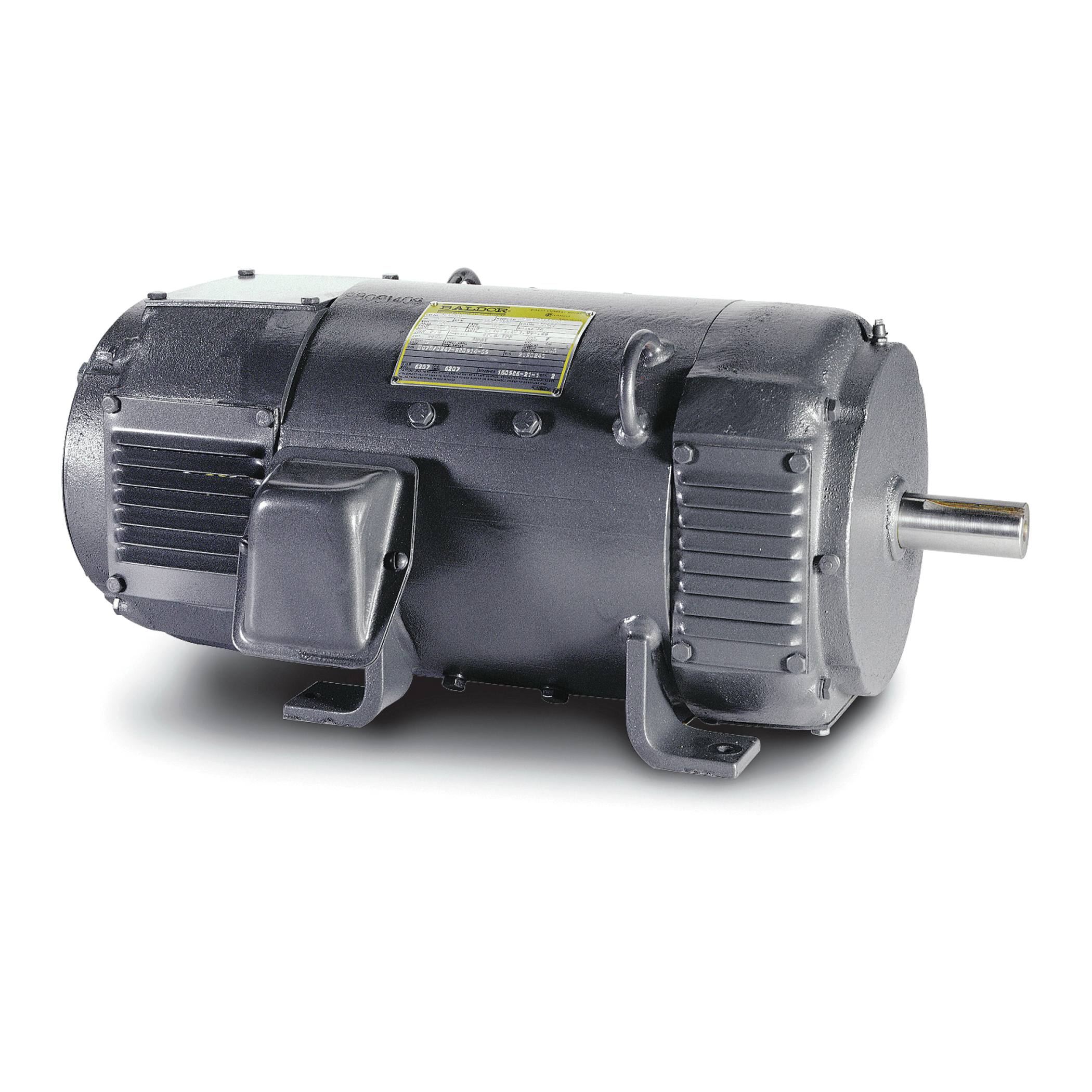

Baldor-Reliance
D5005P

Baldor-Reliance DC motors offer performance and reliability in tough applications. Round frame DC motors utilize permanent magnet technology optimizing the commutator, brushes and inertia to assure the best performance possible. Wound field motors are designed with superior commutation through the speed range to ensure trouble-free operation and the insulation system is designed with extra margin of safety to eliminate performance-limiting hot spots.

Baldor-Reliance Shunt Wound SCR Drive Motor, Brushed Continuous Duty, Application Type: General Purpose DC Motors, 5 hp, 150/300/500 VDC, 8.5/1.34 to 0.62/0.67 to 0.31 A, 1750/2300 rpm, Drip-Proof Fully-Guarded Self-Ventilated, 186AT Frame, 1-1/8 in Shaft, Reversible, Service Factor: 1, Ball Bearing, 40 deg C, Insulation Class: Class F, Steel, 20.87 in L x 8.81 in W x 8.94 in H

• High dielectric stability
• Low moment of inertia armature for fast response
• Includes thermostat on interpole
• Constant pressure brush springs and longer brushes for reduced maintenance
• Tachometer adaptable
