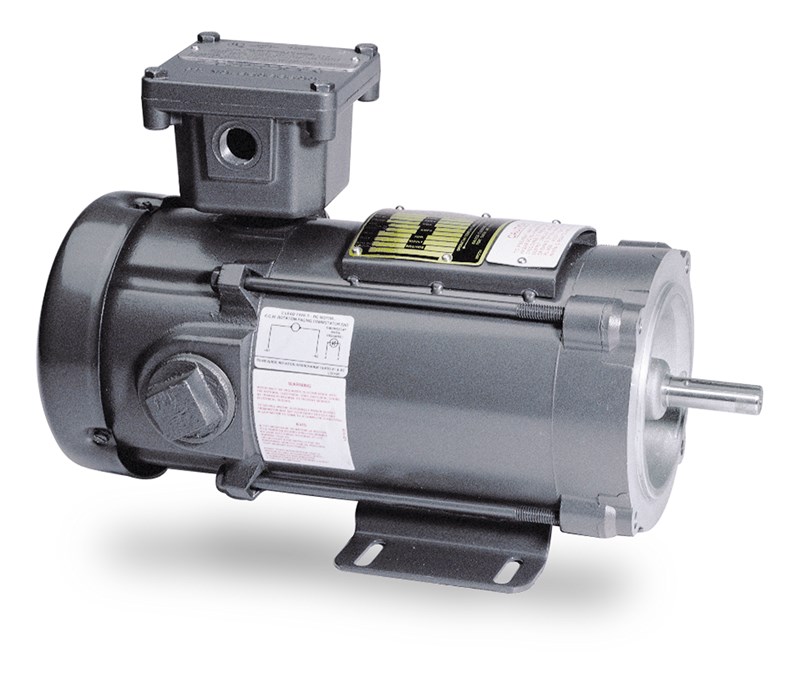

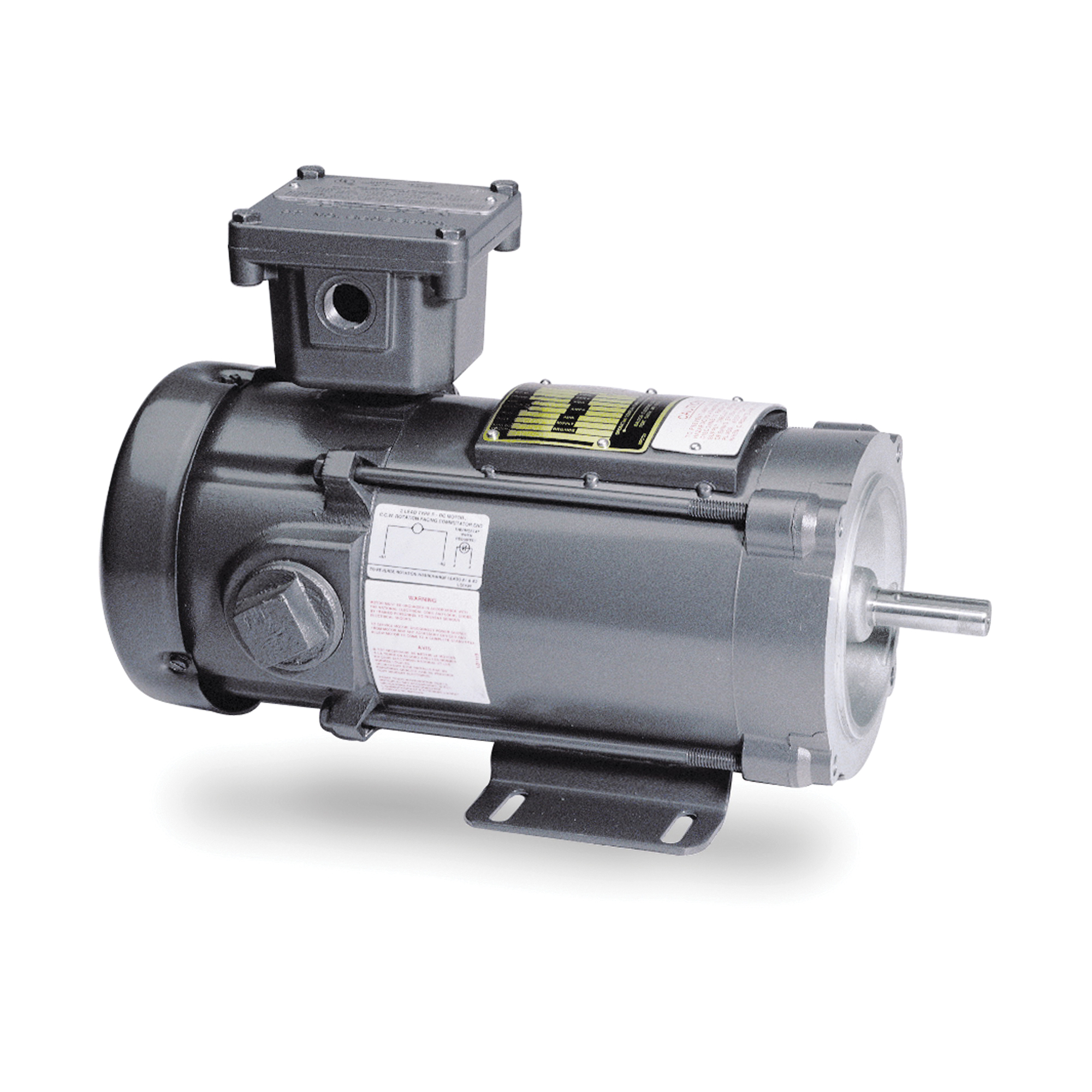

Baldor-Reliance
CDPX3436

Baldor-Reliance DC motors offer performance and reliability in tough applications. Round frame DC motors utilize permanent magnet technology optimizing the commutator, brushes and inertia to assure the best performance possible. Wound field motors are designed with superior commutation through the speed range to ensure trouble-free operation and the insulation system is designed with extra margin of safety to eliminate performance-limiting hot spots.

Baldor-Reliance DC Motor, Continuous Duty Type X3435P, General Purpose DC Motors Application, 0.75 hp Power, 180 VDC, 3.5 A, 1750 rpm Speed, XPFC Enclosure, 56C Frame, 5/8 in Shaft, Reversible Rotation, 1 Service Factor, Sealed Bearing, 2.26 ft-lb Torque, Foot Rigid Mounting, 40 deg C, Insulation Class: Class F, Steel, 15.87 in L x 8.47 in W x 9.97 in H Dimensions

• NEMA C-face with welded base
• Adjustable speed and constant torque for hazardous locations

• Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_CDPX3436_Line_Drawing.pdf
• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_EJM3559_Catalog.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_bb7ef393b12d2934eaef30aa1d95c9a335ef213d293f8e2c26e9b937515f4e50.pdf
• Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f72c3f2fd40e44bf27049362066fbbce79f483ddafb5d33790909f1947046c15.pdf
