Baldor-Reliance

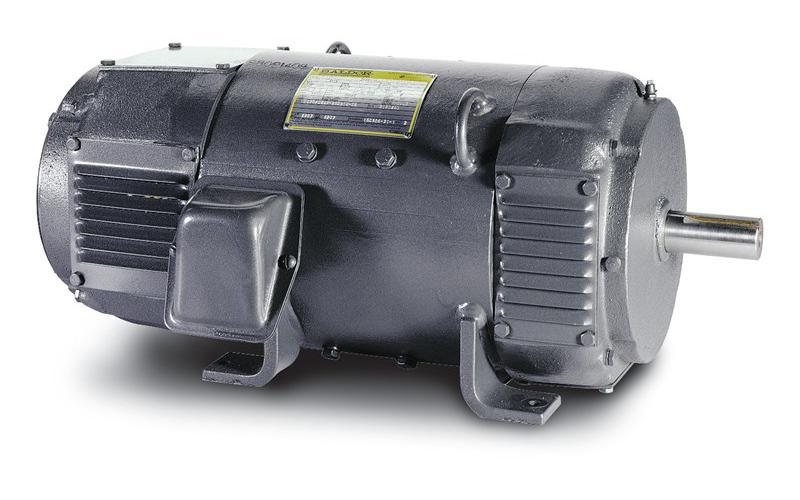

D2025P

Available in round frame and unique laminated square frames, Baldor-Reliance DC motors offer performance and reliability in tough applications. Round frame DC motors utilize permanent magnet technology optimizing the commutator, brushes, and inertia to assure the best performance possible. Wound field motors are designed with superior commutation through the speed range to ensure trouble-free operation and the insulation system is designed with extra margin of safety to eliminate performance limiting hot spots.

Baldor-Reliance DC Motor, SCR Drive Motor Application Type, Continuous Duty Motor, Shunt and Stabilized Shunt Wound Self-Ventilated Motor, Straight Shunt Field Winding Special Features, 25 hp, 240/300 VDC, 2.96/89.2 A, 1750 rpm, DPFG, 288AT Frame, 1-7/8 in Shaft, Reversible, Service Factor: 1, 6210 Ball Bearing, F-1 Mount, 40 deg C, Insulation Class: Class F, 32-3/4 in L

• Class F insulation system resistant to dirt, carbon, dust and moisture
• High dielectric stability
• Low moment of inertia armature for fast response
• Constant pressure brush springs and longer brushes for reduced maintenance
• Includes grease fittings and reliefs for bearing maintenance
• Maximum rpm by field weakening
• Provisions for tach mounting
• May be converted to blower ventilated (DPBV) for extended constant torque speed range
• 89.2 A armature, 2.96 A field current rating
• 240 VDC armature, 300 VDC field voltage rating
• Without drip cover
