Baldor-Reliance
EJMM3212T

From industrial wastewater to fire suppression systems or commercial pools, Baldor-Reliance pump motors provide value by increasing reliability and reducing maintenance costs. Utilizing energy efficient designs, our pump motors meet NEMA Premium® efficiency and Inverter ready with wide variable torque speed ranges. Motor construction can be tailored for specific applications and industries such as food processing, washdown applications or explosion proof enclosures for pumps in hazardous areas.

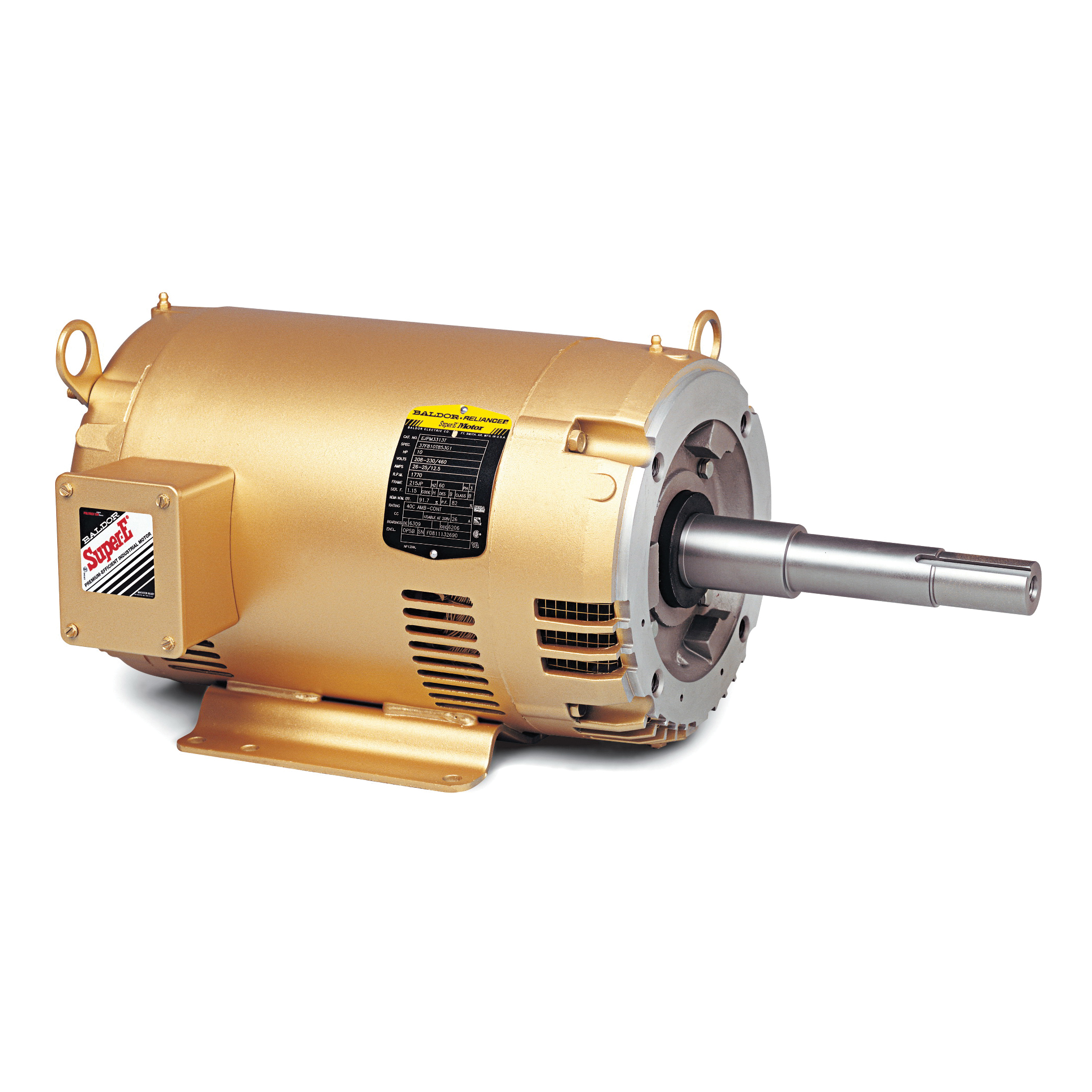

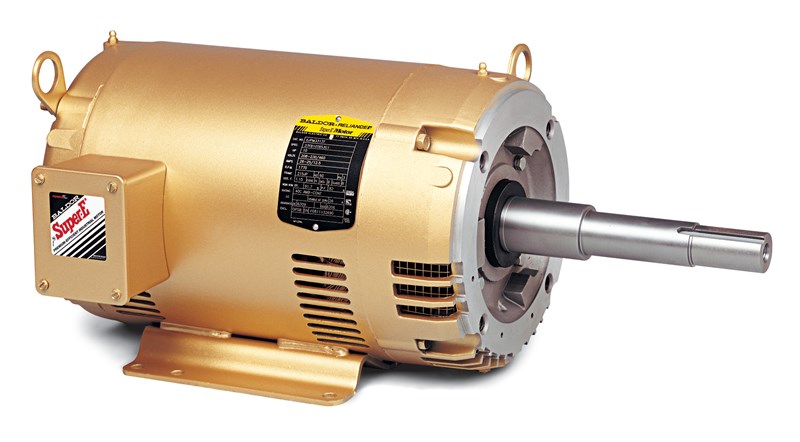

Baldor-Reliance Super-E® AC Motor, Closed Couple Pump Continuous Duty Type 3622M, General Purpose AC Motors, Sewage & Wastewater Pump Motors Application, 5 hp, 208/230/460 VAC, 12.8/12/6 A, 60 Hz Frequency, 3 ph ph, 3450 rpm Speed, 1 Speed, Open Slotted Band Enclosure, 182JM Frame, 7/8 in Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 7.66 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Steel, 15.12 in L x 11.77 in W x 10.87 in H Dimensions

• Rodent screens to protect against trash debris
• Oversize ball bearings for the pump industry
• Locked drive end bearing to allow mounting in any configuration
• Designed for longevity
• Suitable for inverter use

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_EJM3559_Catalog.pdf
• Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_EJMM3212T_Line_Drawing.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_0af03ae0a448b49182b6599e7b0f5db456109258c84db1c74f37bf31d5351447.pdf
• Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f72c3f2fd40e44bf27049362066fbbce79f483ddafb5d33790909f1947046c15.pdf
