Baldor-Reliance
D2050P-BV

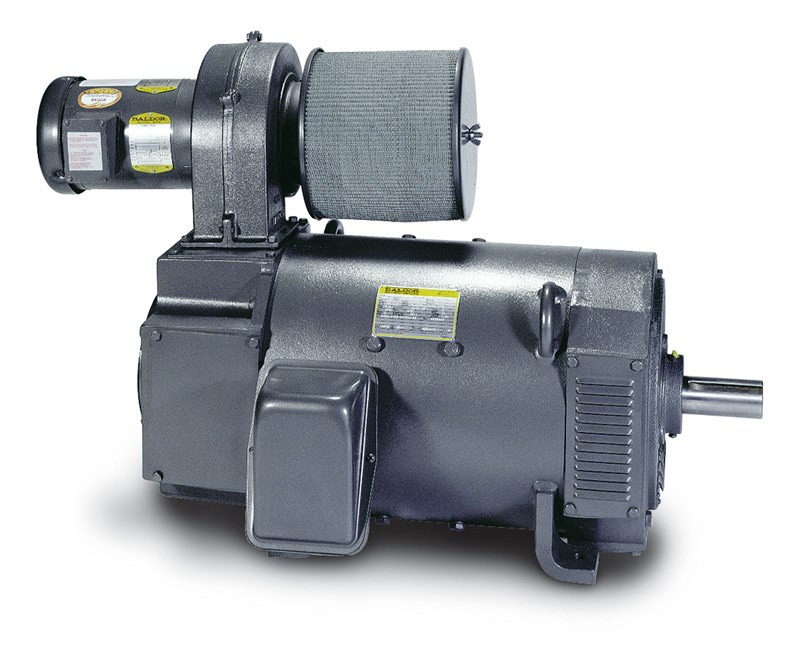

Baldor-Reliance D2050P-BV DC Motor With Rigid Base Indicator, 50 hp Power Rating, 240/300 VDC, 2.64/175 A, 328AT Frame, 1750 rpm Speed

  • Manufacturer: ABB Baldor-Reliance
  • Brand: Baldor-Reliance
  • BSC Item#: D2050P-BV BLDR
  • MPN: D2050P-BV
  • UPC: 781568204399
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Baldor-Reliance DC Motor, SCR Drive Motor Application Type, Continuous Duty Motor, Shunt and Stabilized Shunt Wound Motor, Straight Shunt Field Winding Special Features, 50 hp, 240/300 VDC, 2.64/175 A, 1750 rpm, DPBV, 328AT Frame, 2-1/8 in Shaft, Reversible, Service Factor: 1, 6211 Ball Bearing, F-1 Mount, 40 deg C, Insulation Class: Class F, 34.63 in L

  • Class F insulation system resistant to dirt, carbon, dust and moisture
  • High dielectric stability
  • Low moment of inertia armature for fast response
  • Constant pressure brush springs and longer brushes for reduced maintenance
  • Includes grease fittings and reliefs for bearing maintenance
  • Maximum rpm by field weakening
  • Provisions for tach mounting
  • Blower ventilated
  • 175 A armature, 2.64 A field current rating
  • 240 VDC armature, 300 VDC field voltage rating
  • Without drip cover
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_2145f6c3c32b8620c7e4c0891c5131508c148bad7ac5de03d12a87bd5bc12425.pdf
  • pdf Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f72c3f2fd40e44bf27049362066fbbce79f483ddafb5d33790909f1947046c15.pdf
Standard/Approvals      :      ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CSA Certified
Application      :      Conveyors, Plastic Extruders, Packaging Machinery and Other Constant Torque Applications
